Lista De Piezas De Repuesto

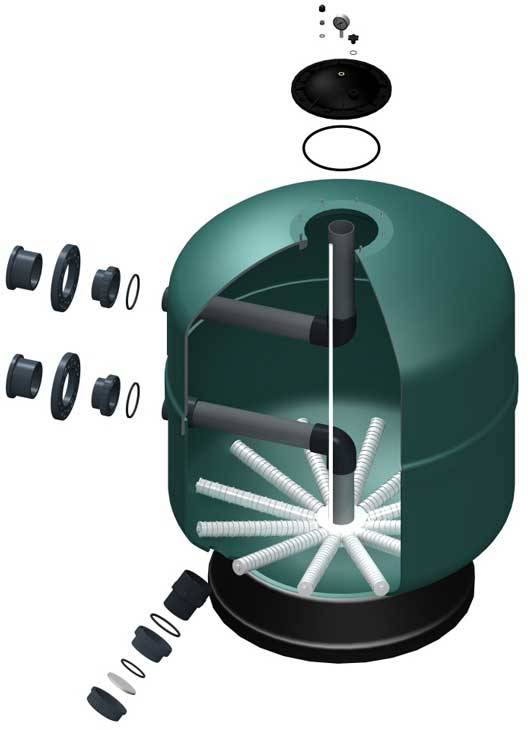

"021117F | GEMAS "Filtrex" Sand Filters Ø 1000 mm Ø 75 Slip union connections - without multipart valve -40 m3/h" Lista de materiales
volver atrás| código de almacenamiento | descripción | Cantidad | precio | paquete | peso | volumen |
|---|---|---|---|---|---|---|
| 02100001 | Filtrex Filter Lid | 1 | 27.2 | |||
| 021000011 | Screw Cap (Small) | 1 | 0.2 | |||
| 02100004 | Manometer Ø52 0-3 Bar | 1 | 12 | |||
| 02100005 | Air Purge | 1 | 1.4 | |||
| 860269 | Air Purge O-Ring | 1 | 0,3 | |||
| 02100006 | Filtrex Filter Lid O-Ring (205x8,5) | 1 | 7,3 | |||
| 2100017 | Filter Connection O-Ring (İnner Ø78-7mm) | 1 | 0 | |||
| 02100018 | Filter Connection Body Ø75 Female Thd. | 2 | 10 | |||
| 860291 | Filter Connection O-Ring (Outer Ø97-8mm) | 3 | 1.9 | |||
| 02100028 | Filter Connection Body Ø110 Female Thd. | 1 | 12.00 | |||
| 02111704 | Ø 1000 Filtrex Filter Bottom Plastic Base | 1 | 184.00 | |||
| 021117AIT | Ø 1000 Filtrex İnside Set (Bottom) | 2 | 18 | |||
| 021117UIT | Ø 1000 Filtrex İnside Set (Top) | 3 | 34 | |||
| 02111801 | Sand Drainage Flange | 1 | 0 | |||
| 13111612AT | Ø 75 Filter Connection Nut | 1 | 7 | |||
| 133508 | Ø 110 mm | 1 | 3.61 | 75 | 25.86 | 0.094 |
| 8500058 | Washer Inox M8 | 1 | 0,98 | |||
| 8500305 | M8 Chrome 304 Quality Nut | 1 | 0,10 | |||
| PPVCFL90 | Ø 110 Flange | 2 | 0 | |||
| PPVCKL90 | Ø 110 Flange Adaptor | 2 | 0 |
