Lista De Piezas De Repuesto

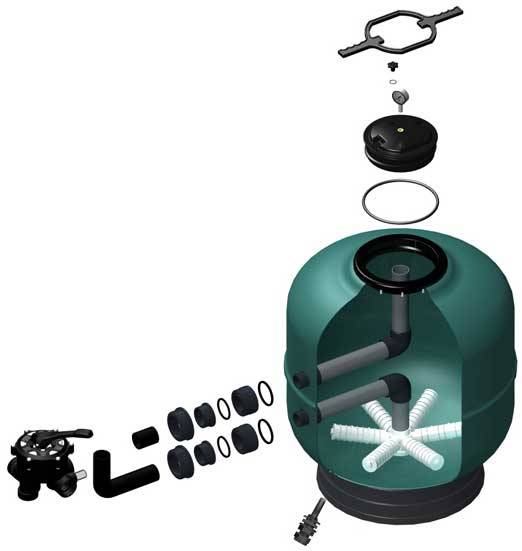

"021213 | Ø650 mm - 1,5" multiport side valve - 17 m³/h" Lista de materiales
volver atrás| código de almacenamiento | descripción | Cantidad | precio | paquete | peso | volumen |
|---|---|---|---|---|---|---|
| 02400 | Ø 50 mm Slip Connections - Metric | 1 | 54 | 1 | 1.6 | 0.008 |
| 860285 | O-Ring For Drain Plug | 1 | 0.47 | |||
| 021000000 | Water Drainage Piece | 1 | 8.4 | |||
| 02100004 | Manometer Ø52 0-3 Bar | 1 | 15 | |||
| 02100005 | Air Purge | 1 | 1.9 | |||
| 02100015 | Filter Connection Body 1 ½" Female Thd. | 2 | 7.5 | |||
| 02111309 | Ø 630 Plastic Base | 1 | 0.00 | |||
| 02120001 | Neptune Filter Lid | 1 | 28 | |||
| 860056 | Neptune Filter Lid O-Ring | 1 | 10 | |||
| 02120005 | Neptune Filter Lid Screw Handle | 1 | 8.7 | |||
| 021213AIT | Ø 650 Neptune Inside Set (Bottom) | 2 | 57 | |||
| 021213UIT | Ø 650 Neptune Inside Set (Top) | 2 | 0.00 | |||
| 0221500641 | Ø 50 L New Type Of Elbow | 1 | 9 | |||
| 0221501081 | Ø 50 L Elbow Pipe Piece New Type | 1 | 6.15 | |||
| 13111511A | Pipe Connection 1 1/2" | 2 | 7.4 | |||
| 13111512A | Filter Connection Nut 1 ½" | 2 | 6.24 | |||
| 8500073 | M8 Hexagin Head Brass Nut 934 | 1 | 0.00 | |||
| 8500134 | M8 Washer DIN 125 Inox A2 | 1 | 1.49 | |||
| 8500017 | M6 Nut Din 934 | 2 | 0.00 | |||
| 8500020 | M6 Inox Washer Din 126 For | 1 | 0.00 | |||
| 860295 | Filter Connection O-Ring ( Outer Ø65-5 mm ) | 2 | 1.83 | |||
| 860296 | Filter Connection O-Ring ( Inner Ø55-5 mm ) | 2 | 1.34 | |||
| 021000043 | Ø50 Red Pipe Cap for Filter | 1 | 0.00 | |||
| 02120002 | Neptune Filter Cover Frame | 1 | 34 | |||
| 860002 | Gasket for filter lid frame | 1 | 14.9 |
