Lista De Piezas De Repuesto

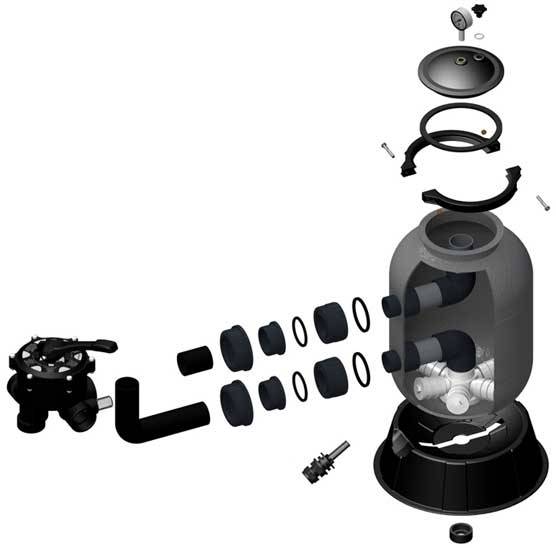

"021310 | Ø 300 mm -11/2" side mounted multiport valve - 3,54 m3/h" Lista de materiales
volver atrás| código de almacenamiento | descripción | Cantidad | precio | paquete | peso | volumen |
|---|---|---|---|---|---|---|
| 02400 | Ø 50 mm Slip Connections - Metric | 1 | 43 | 1 | 1.600 | 0.008 |
| 024041 | Clamp Set - (Old) | 7 | 21 | 1 | ||
| 021000000 | Water Drainage Piece | 1 | 7 | |||
| 02100004 | Manometer Ø52 0-3 Bar | 1 | 12 | |||
| 02100005 | Air Purge | 1 | 1.4 | |||
| 860269 | Air Purge O-Ring | 1 | 0,3 | |||
| 02100015 | Filter Connection Body 1 ½" Female Thd. | 2 | 6 | |||
| 0213000Y | Filter Body For Side Mounted Ø300 | 1 | 62 | |||
| 0213010 | Lınked Clamps Filter Cover - Black | 1 | 27.2 | |||
| 860040 | Gasket For Filter Lid With Clamp Con. | 1 | 7,3 | |||
| 021310AIT | Ø 300 Side Mounted Ikarus Inside Set (Bottom) | 2 | 25 | |||
| 021310UIT | Ø 300 Side Mounted Ikarus Inside Set (Top) | 3 | 20 | |||
| 02132005 | Ø 300 Ikarus Plastic Base | 1 | 34.00 | |||
| 021320051 | Ikarus Plastic Base Nut | 1 | 0 | |||
| 022150064 | L-Shaped Elbow Ø50 mm | 1 | 6.9 | |||
| 022150108 | L-Shaped Elbow Pıpe Part Ø50 mm | 1 | 1.6 | |||
| 13111511A | Pıpe Connection 1 1/2" | 2 | 6 | |||
| 13111512A | Filter Connection Nut 1 ½" | 2 | 5.6 | |||
| 860295 | Filter Connection O-Ring ( Outer Ø65-5 mm ) | 2 | 1,5 | |||
| 860296 | Filter Connection O-Ring ( İnner Ø55-5 mm ) | 2 | 1,1 |
