Lista De Piezas De Repuesto

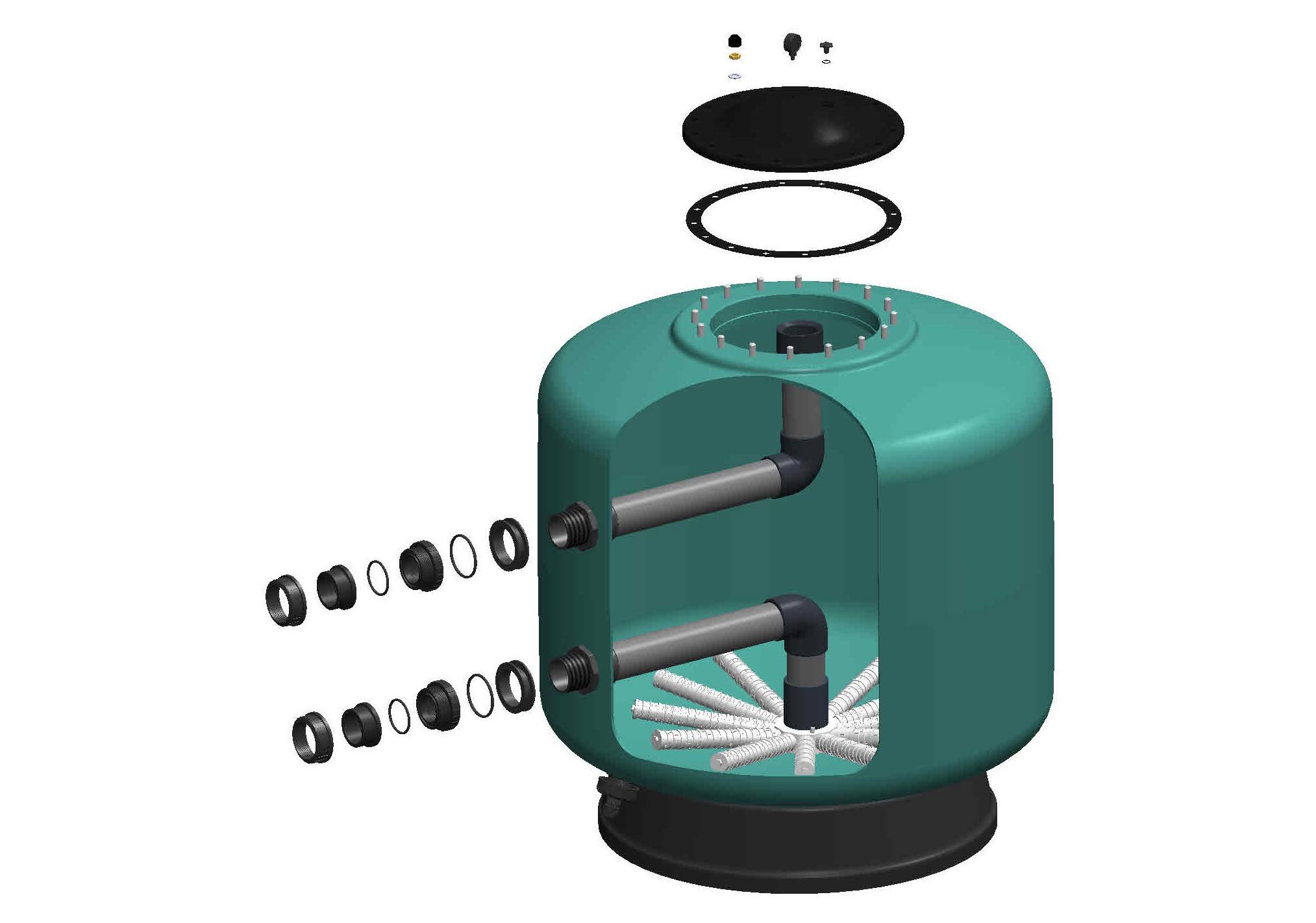

"021717E | Ø1200 mm - 56 m³/h, 75 mm unions" Lista de materiales
volver atrás| código de almacenamiento | descripción | Cantidad | precio | paquete | peso | volumen |
|---|---|---|---|---|---|---|
| 02100001TB | Ø 50 Turbidron Water Discharge Parts Set | 1 | 0 | |||
| 021000029 | Ø 1200 Polyester Foot | 1 | 0 | |||
| 02100004 | Manometer Ø52 0-3 Bar | 1 | 12 | |||
| 860269 | Air Purge O-Ring | 2 | 0,3 | |||
| 02100006 | Filtrex Filter Lid O-Ring (205x8,5) | 1 | 7,3 | |||
| 02100018 | Filter Connection Body Ø75 Female Thd. | 2 | 10 | |||
| 860291 | Filter Connection O-Ring (Outer Ø97-8mm) | 1 | 1.9 | |||
| 021717EAIT | Ø 1200 Bobin Filter İnside Set (Bottom) | 1 | 0 | |||
| 021717EUIT | Ø 1200 Bobin Filter İnside Set (Top) | 1 | 0 | |||
| 13111612AT | Ø 75 Filter Connection Nut | 2 | 7 | |||
| 13111711AT | Filter Pıpe Connection Ø75 mm | 2 | 7 | |||
| 021000012 | Filtrex Filter Lid Screw Cap Middle | 1 | 0,2 | |||
| 860284 | Wide Cower Gasket | 1 | 14 | |||
| 8500076 | M12 Tightening Hexagin Brass Nut-Yellow | 1 | 0 | |||
| 8500281 | M12 Inox Washer A2 | 1 | 0 | |||
| 860290 | Filter Pipe Connection O-ring Inner Ø78x7 | 1 | ||||
| 02100004LL | 1 | |||||
| 860455 | Ø75 Sandwich Gasket Ø76x11X25 mm | 2 |
