Lista De Piezas De Repuesto

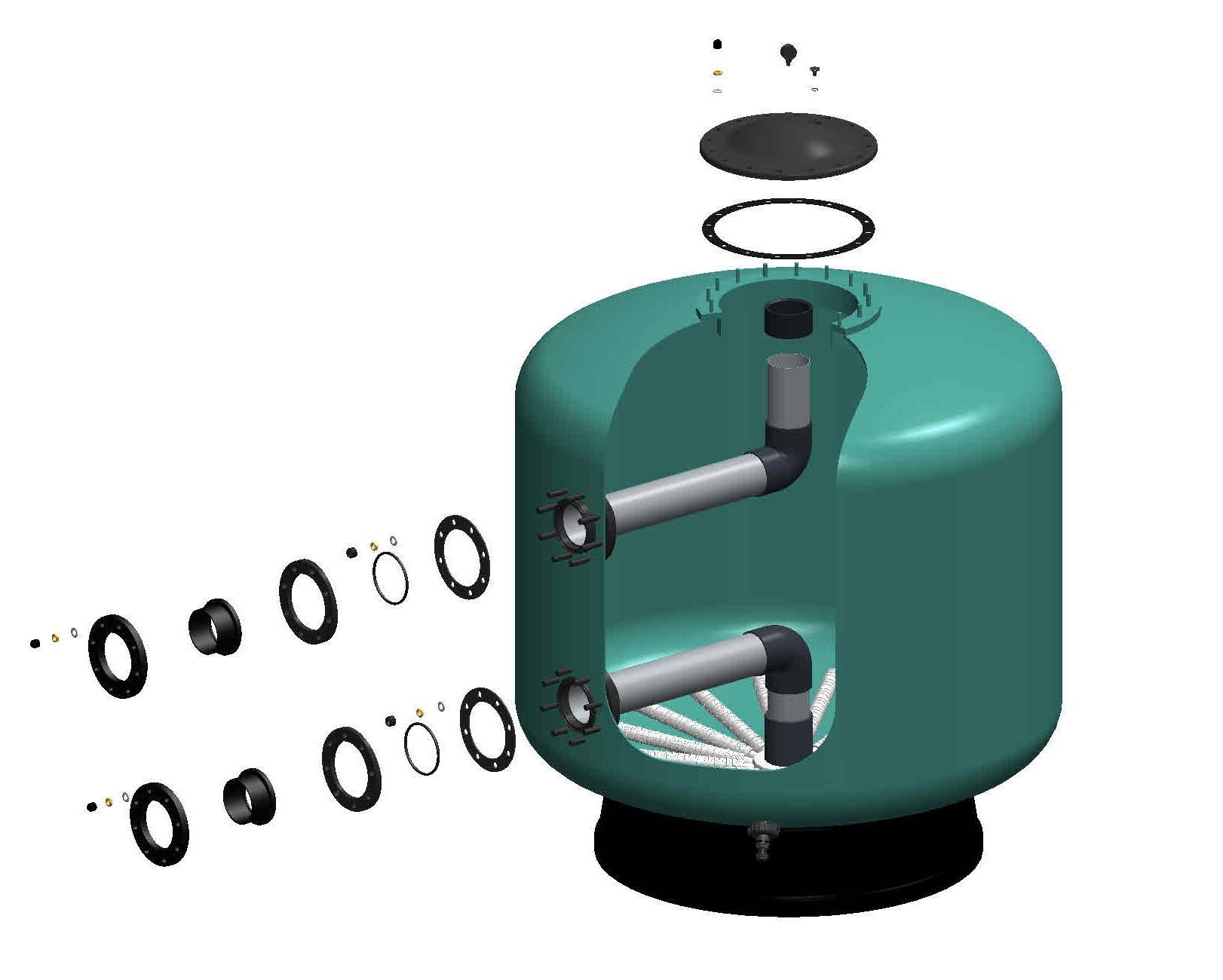

"021719 | Ø1600 mm - 100 m³/h" Lista de materiales
volver atrás| código de almacenamiento | descripción | Cantidad | precio | paquete | peso | volumen |
|---|---|---|---|---|---|---|
| 133910 | Ø 125 mm | 2 | 3.32 | 15 | 9.400 | 0.049 |
| 021000013 | Lid Screw Cap | 4 | 0.1 | |||
| 02100001LL | Ø 615 Large Lid Filtrone Filter Lid | 1 | 60 | |||
| 02100001TB | Ø 50 Turbidron Water Discharge Parts Set | 1 | 0 | |||
| 021000034 | Ø 1600 Polyester Foot | 1 | 0 | |||
| 860269 | Air Purge O-Ring | 2 | 0,3 | |||
| 02100006 | Filtrex Filter Lid O-Ring (205x8,5) | 2 | 7,3 | |||
| 1331010 | Ø 125 mm | 2 | 4.09 | 23 | 15.060 | 0.049 |
| 021000012 | Filtrex Filter Lid Screw Cap Middle | 1 | 0,2 | |||
| 8500052 | M16 Grass Nut | 5 | 0 | |||
| 8500353 | M16 Inox Stamp | 5 | 0,75 | |||
| 860284 | Wide Cower Gasket | 1 | 14 | |||
| 860025 | Ø140 Turbidron Bolted D Gasket 145x145x9 | 2 | 4,5 | |||
| 021719UIT | Ø1600 Coil Wound Pool Sand Filter Upper Inner Set | 1 | 0 | |||
| 021719AIT | Ø1600 Coil Wound Pool Sand Filter Bottom Inner Set | 1 | 0 | |||
| 8500076 | M12 Tightening Hexagin Brass Nut-Yellow | 1 | 0 | |||
| 8500281 | M12 Inox Washer A2 | 1 | 0 | |||
| 02100037 | Ø100x3 Bottom Output Manometer | 1 | ||||
| 02121809 | Ø140 Bolted Union Trapezoid Flange | 1 |
