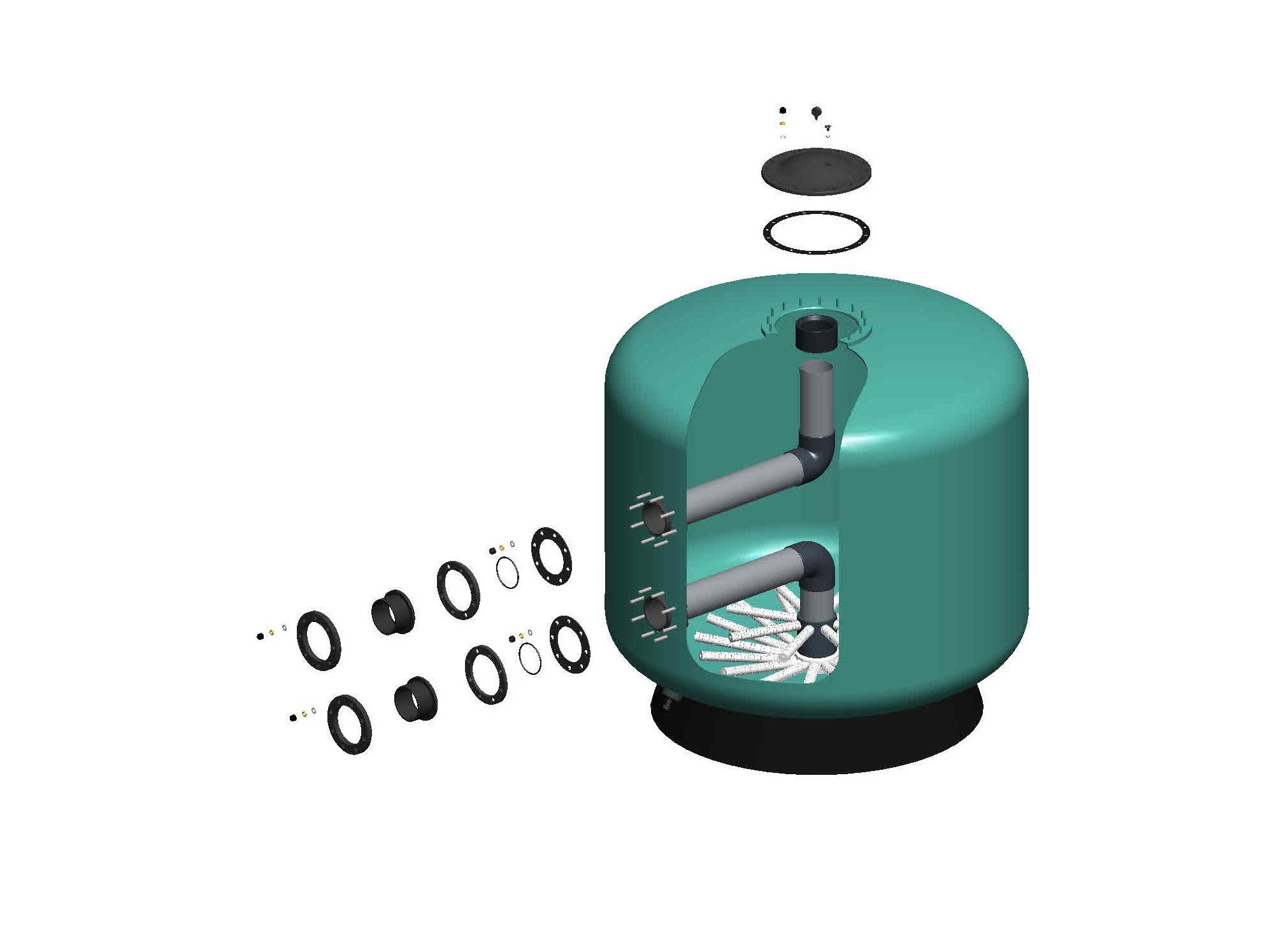

Lista De Piezas De Repuesto
"021721 | Ø2000 mm - 157 m³/h" Lista de materiales
volver atrás| código de almacenamiento | descripción | Cantidad | precio | paquete | peso | volumen |
|---|---|---|---|---|---|---|
| 133912 | Ø 160 mm | 2 | 0.00 | 16 | 18.320 | 0.094 |
| 1331012 | Ø 160 mm | 2 | 0.00 | 25 | 20.840 | 0.094 |
| 02100000TB | Ø 63 Turbidron Water Discharge Piece Set | 1 | 0 | |||
| 021000013 | Lid Screw Cap | 3 | 0.1 | |||
| 860269 | Air Purge O-Ring | 1 | 0,3 | |||
| 02100006 | Filtrex Filter Lid O-Ring (205x8,5) | 1 | 7,3 | |||
| 02121810 | Ø 140 Union Shaft Flanges | 2 | 53.00 | |||
| 021000012 | Filtrex Filter Lid Screw Cap Middle | 1 | 0,2 | |||
| 8500052 | M16 Grass Nut | 5 | 0 | |||
| 8500353 | M16 Inox Stamp | 5 | 0,75 | |||
| 860284 | Wide Cower Gasket | 1 | 14 | |||
| 860354 | EPDM ORing 158.5x4.5 mm 60 Shor-Ø160 o-ring | 2 | 0 | |||
| 021721UIT | Ø2000 Coil Wound Filter Upper Inner Set | 1 | 0 | |||
| 021721AIT | Ø2000 Coil Wound Filter Bottom Inner Set | 1 | 0 | |||
| 8500076 | M12 Tightening Hexagin Brass Nut-Yellow | 1 | 0 | |||
| 021000002 | Air Discharge Set | 1 | 0 | |||
| 8500281 | M12 Inox Washer A2 | 1 | 0 | |||
| 021000050 | Ø2000 Polyester Foot | 1 | ||||
| 02100037 | Ø100x3 Bottom Output Manometer | 1 | ||||
| 02100079 | 1 |
