Lista De Piezas De Repuesto

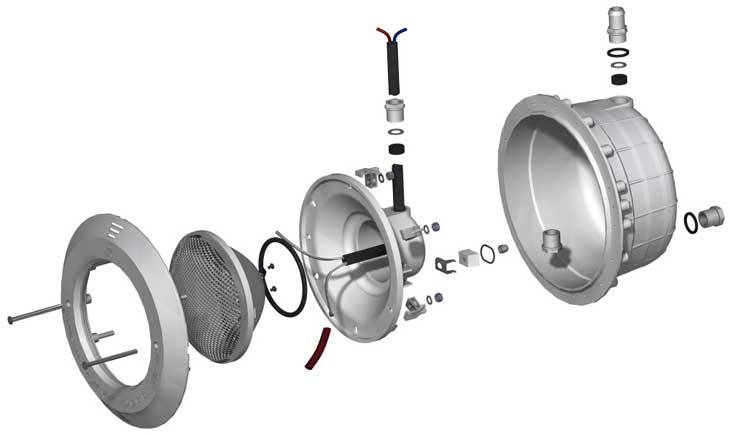

"051115 | 051114, With Locking" Lista de materiales
volver atrás| código de almacenamiento | descripción | Cantidad | precio | paquete | peso | volumen |
|---|---|---|---|---|---|---|
| 8500498 | Nut For Cable Outlet | 2 | 1,2 | 1 | ||
| 05111002 | PAR56 - 300 W/12 V Bulb | 1 | 18 | 12 | 8.194 | 0.046 |
| 0511106 | 2 x 4 TTR price per meter | 3 | 5.25 | 100 | 21.2 | |
| 051110021 | PAR 56 Bulb Screw M4x8,5 | 2 | 0,20 | |||
| 05111104 | Connection Terminal 5mm | 1 | 0.75 | |||
| 05111111 | Hose Connection | 1 | 0.6 | |||
| 05111112 | Blond Nut For Alternative Cable Outlet | 1 | 0.6 | |||
| 05111113 | Wire Protector Ø6 mm | 1 | 0 | |||
| 860058 | O-Ring For Bulb Cover, Ø90x11 mm | 1 | 3 | |||
| 05111403 | STD, 2002 Bulb Cover | 1 | 6 | |||
| 05111407 | STD, 2002 Fastening Clip | 3 | 0.3 | |||
| 05111410 | STD, 2002 Niche For Concrete Pools | 1 | 18 | |||
| 051115001 | STD, 2002 Light With Locking Mech, Face Ring | 1 | 10 | |||
| 05111501 | Conical Part For Locking | 1 | 2.00 | |||
| 05111502 | STD, 2002 Inox Claw For Locking | 1 | 1.00 | |||
| 860099 | STD, 95 Underwater Light Hose Connection Gasket | 2 | 0,4 | |||
| 8500017 | M6 Nut Dın 934 | 3 | 0,05 | |||
| 8500020 | M6 Inox Washer Dın 126 For | 3 | 0,1 | |||
| 860098 | Lamp Cable Choke Gasket Ø 20x12x8 | 2 | 0 | |||
| 860228 | Lamp Locking oring 23,44x1,78 | 1 | ||||
| 8500016 | M6 Blind Nut DIN1587 AISI 304 | 1 | ||||
| 8500425 | “Std 2002 -2004” lamp locking bolt M6x72-75 | 2 |
