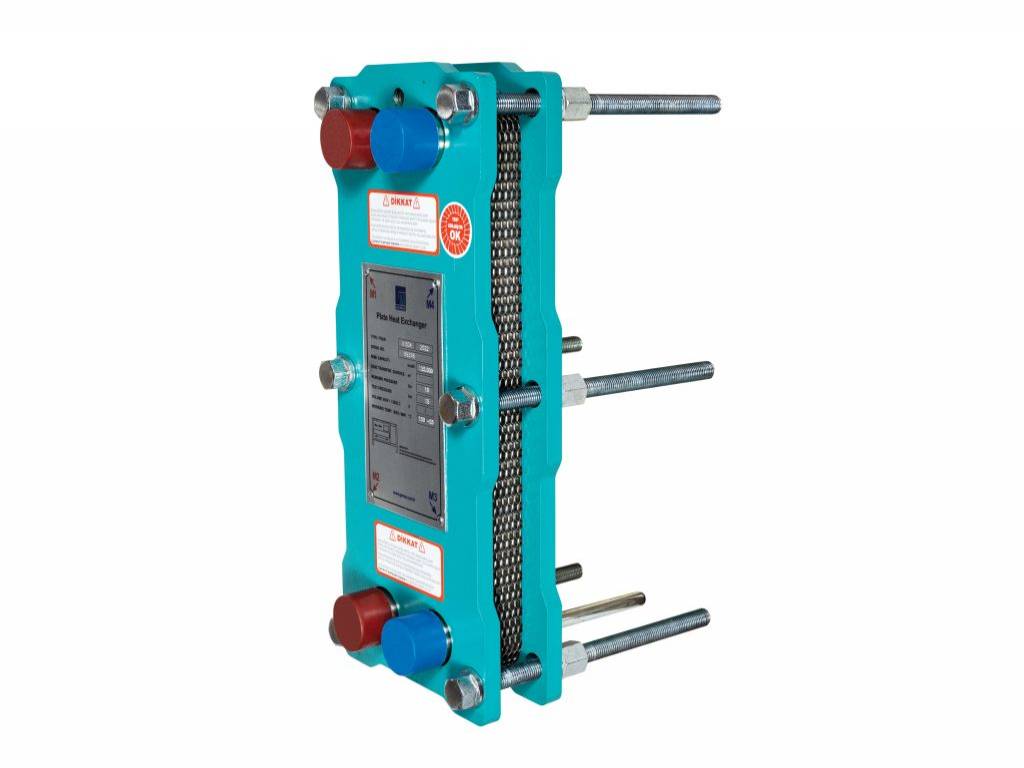

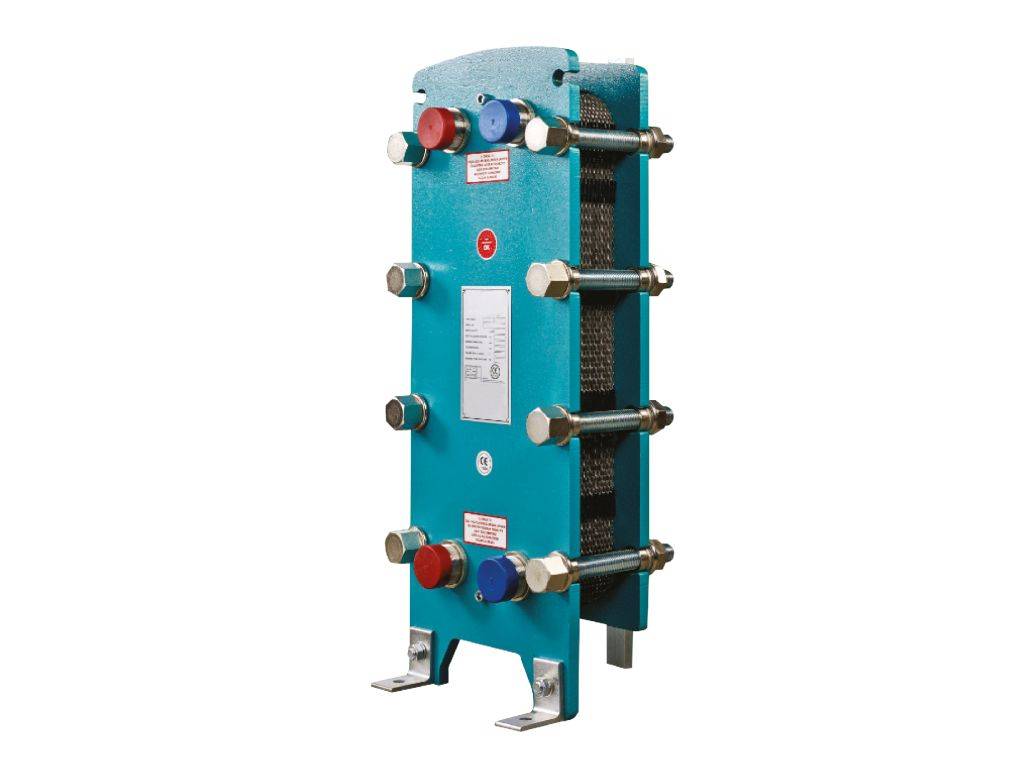

GEMAS Stainless Steel Plate Heat Exchanger
GEMAS Stainless Steel Plate Heat Exchanger
Made of AISI 316 quality stainless steel with nitryl or EPDM seal exchangers. Operated by 90-70°C hot water from boiler. Max. pressure 10 bars - Max. heat 130°C. Pressure loss from boiler and pool is 5 mwh.
| descripción | código de almacenamiento | precio (€) |
peso (kg) |
volumen (m³) |
PİEZAS DE REPUESTO
|
|---|---|---|---|---|---|
| 30,000 kcal/h, 504 Body, 5 Pl. | 101251 | Regístrese para ver el precio | |||
| 40,000 kcal/h, 504 Body, 6 Pl. | 101252 | Regístrese para ver el precio | |||
| 50,000 kcal/h, 504 Body, 7 Pl. | 101253 | Regístrese para ver el precio | |||
| 60,000 kcal/h, 504 Body, 8 Pl. | 101254 | Regístrese para ver el precio | |||
| 70,000 kcal/h, 504 Body, 10 Pl. | 101255 | Regístrese para ver el precio | |||
| 80,000 kcal/h, 504 Body, 10 Pl. | 101256 | Regístrese para ver el precio | |||
| 90,000 kcal/h, 504 Body, 12 Pl. | 101257 | Regístrese para ver el precio | |||
| 100,000 kcal/h, 504 Body, 12 Pl. | 101258 | Regístrese para ver el precio | |||
| 125,000 kcal/h, 504 Body, 16 Pl. | 101259 | Regístrese para ver el precio | |||
| 150,000 kcal/h, 504 Body, 20 Pl. | 101261 | Regístrese para ver el precio | |||
| 175,000 kcal/h, 504 Body, 24 Pl. | 101262 | Regístrese para ver el precio | |||
| Plate Heat Exchangers - High Pressure Drop GEMAS Stainless Steel Plate Heat Exchanger. 200,000 kcal/h, 514 Body, 10 Pl. | 101263 | Regístrese para ver el precio | |||
| Plate Heat Exchangers - High Pressure Drop GEMAS Stainless Steel Plate Heat Exchanger. 250,000 kcal/h, 514 Body, 12 Pl. | 101264 | Regístrese para ver el precio | |||
| Plate Heat Exchangers - High Pressure Drop GEMAS Stainless Steel Plate Heat Exchanger. 300,000 kcal/h, 514 Body, 14 Pl. | 101265 | Regístrese para ver el precio | |||
| Plate Heat Exchangers - High Pressure Drop GEMAS Stainless Steel Plate Heat Exchanger. 325,000 kcal/h, 514 Body, 14 Pl. | 101266 | Regístrese para ver el precio | |||
| Plate Heat Exchangers - High Pressure Drop GEMAS Stainless Steel Plate Heat Exchanger. 400,000 kcal/h, 514 Body, 18 Pl. | 101267 | Regístrese para ver el precio | |||
| Plate Heat Exchangers - High Pressure Drop GEMAS Stainless Steel Plate Heat Exchanger. 500,000 kcal/h, 514 Body, 22 Pl. | 101268 | Regístrese para ver el precio | |||
| Plate Heat Exchangers - High Pressure Drop GEMAS Stainless Steel Plate Heat Exchanger. 600,000 kcal/h, 514 Body, 28 Pl. | 101269 | Regístrese para ver el precio | 0 | ||
| Thermostat and Solenoid Automation | 101260 | Regístrese para ver el precio |
