Lista De Piezas De Repuesto

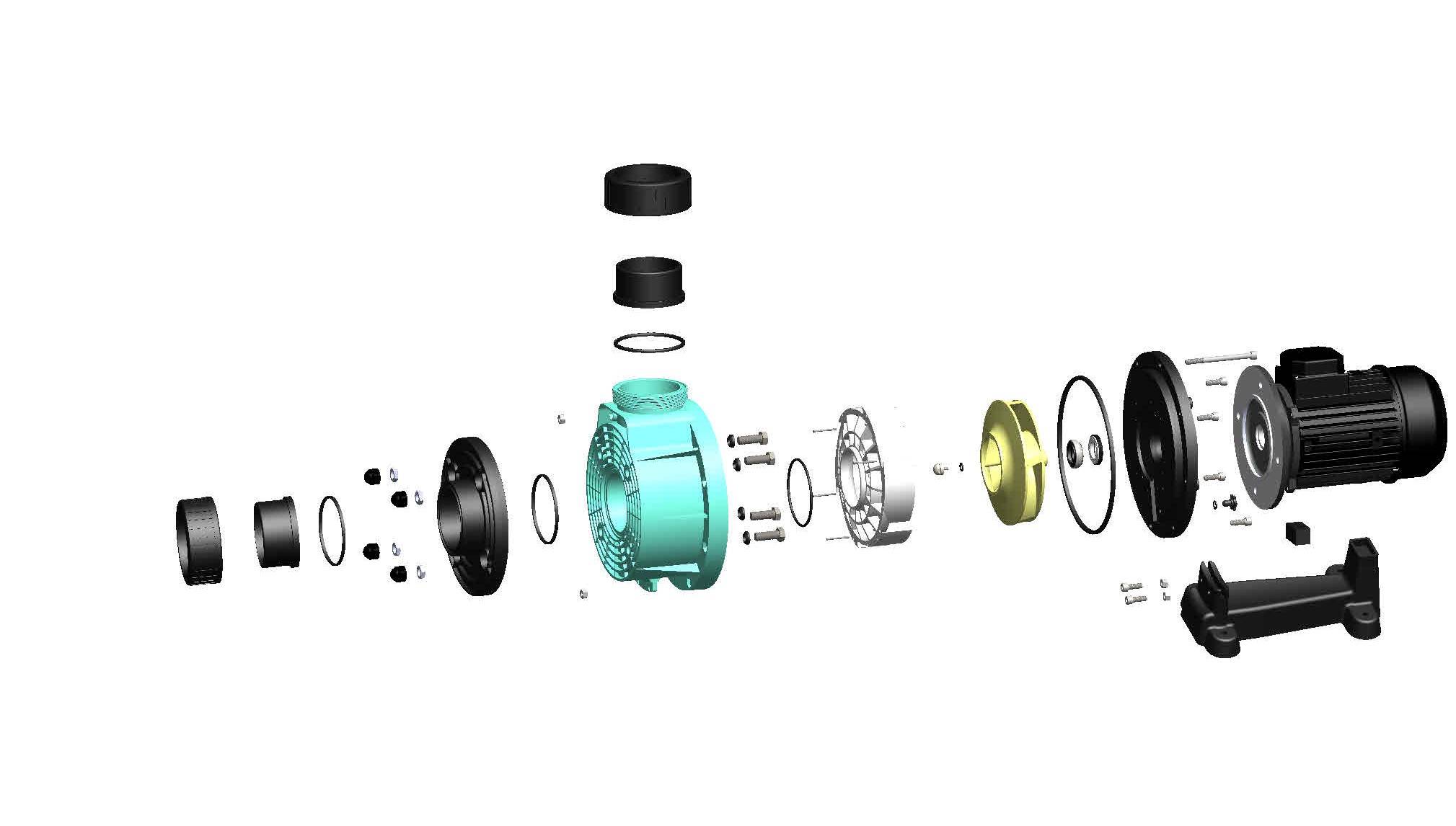

"0111FLJS100 | 10 HP,Triphase, FLJS 1000T" Lista de materiales
volver atrás| código de almacenamiento | descripción | Cantidad | precio | paquete | peso | volumen |
|---|---|---|---|---|---|---|
| 0111MTR18 | Electric Motor 7.5 Kw - Trıphase | 1 | 0 | |||
| 0111FLO01 | Flooder Pump Body | 1 | 124 | |||
| 0111FLO03 | Flooder Body Connection Piece | 1 | 74 | |||
| 0111FLO05 | Flooder Pump Base | 1 | 42 | |||
| 0111FLO06 | Pump Connection Nut | 2 | 10 | |||
| 0111FLO16 | Mechanical Seal Complete | 2 | 71.6 | |||
| 0111MFL40 | Mega Flooder Pump Back Cover | 1 | 80 | |||
| 0111STR02 | Drain Plug | 1 | 0.85 | |||
| 860285 | O-Ring For Drain Plug | 2 | 0.4 | |||
| 0111STR04H | High Pump Leg (Streamer) | 2 | 20 | |||
| 021000013 | Lid Screw Cap | 5 | 0.1 | |||
| 8500204 | Nut Inox M10 | 2 | 0,4 | |||
| 139909T | Flooder Pıpe Connection Part | 2 | 10.00 | |||
| 8500040 | İnox Bolts M10x130 | 1 | 9.06 | |||
| 8500052 | M16 Grass Nut | 4 | 0 | |||
| 8500090 | Inox Bolts 4x70 | 4 | 2.00 | |||
| 8500264 | İnox Bolts M10x30 | 4 | 1,9 | |||
| 860126 | D O-Ring 122x5,5 Pıpe Connection | 3 | 0 | |||
| 860148 | Bolt Gasket | 5 | 0,5 | |||
| 860163 | O-Ring 125x4,5 Pump Body Connection | 1 | 2,4 | |||
| 860271 | Body D O-Ring 280x294x11 | 1 | 5 | |||
| 8500057 | M10 Washer DIN 125 Inox A2 | 1 | 0 | |||
| 860326 | Diffuser O-Ring 113x6 | 1 | 2.4 | |||
| 0111FLOS12 | Fan FLOS100 (10 HP) (5mm turned-screwed) | 1 | 95 | |||
| 8500134 | M8 Washer DIN 125 Inox A2 | 1 | 0 | |||
| 8500420 | M8 Nut Dın 6923 Brass | 2 | 0 | |||
| 8500143 | M8x45 Allen Head Imbus Bolt DIN912 Inox A2 | 2 | ||||
| 8500403 | M16x45 Inox Bolts Dın 933 Inox A2 | 5 | 6,42 | |||
| 8500047 | M10x25 Bolt DIN 933 Inox A2 | 1 | 1,42 | |||
| 0111STR36N | M8x30 Plastic B. Counter Bolt DIN933 InoxA2 Floodr | 1 | ||||
| 0111FLOS15 | Flooder-S Pump Diffuser | 1 |
