Lista De Piezas De Repuesto

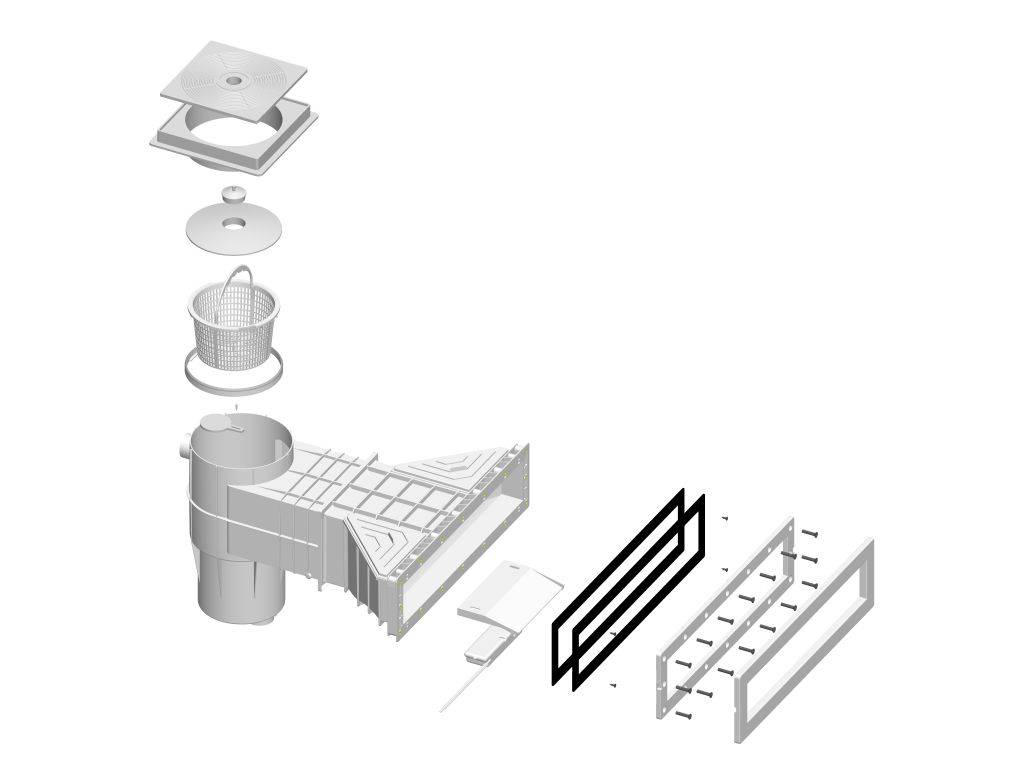

"04215BFW | Liner Pools with brass cavities" Lista de materiales
volver atrás| código de almacenamiento | descripción | Cantidad | precio | paquete | peso | volumen |
|---|---|---|---|---|---|---|
| 0411101 | Skimmer Square Cover | 1 | 7.20 | |||
| 0411102 | Square Cover Slot | 1 | 10.8 | |||
| 0411105 | Vacuum Adapter Cap | 1 | 2.8 | |||
| 0411106 | Vacuum Adapter | 1 | 5.2 | |||
| 0411107 | Skimmer Basket | 1 | 5.8 | |||
| 04111071 | Skimmer Basket Handle | 1 | 1.50 | |||
| 0411109 | Flow Regulator | 1 | 2.4 | |||
| 04111FW01 | Floater | 1 | 3 | |||
| 04111FW02 | Floating Cover | 1 | 3.4 | |||
| 04111FW03 | Floating Cover Bar | 1 | 1.8 | |||
| 04111FW04 | Floating Cap Plug | 1 | 0.5 | |||
| 0412103 | Basket Locking Part | 1 | 3 | |||
| 8500014 | Inox Screw For Brass Females - M6x20 | 16 | 0,6 | |||
| 04215B01 | Level High Skimmer Body Wrapped Wide Mouth Triangle Piece | 1 | ||||
| 860459 | High Level Skimmer Liner Gasket 135x548 mm | 2 | ||||
| 8500009 | 5.5x16 YSB Screw AISI 304 (DIN 7981) | 4 | ||||
| 0421503 | High Level Skimmer Liner Inner Frame-Lath | 1 | ||||
| 0421502 | High Level Skimmer Liner Outer Frame-Flange | 1 | ||||
| 8500088 | M3.5x13 YSB Sheet Metal Screw DIN7981 | 1 |
