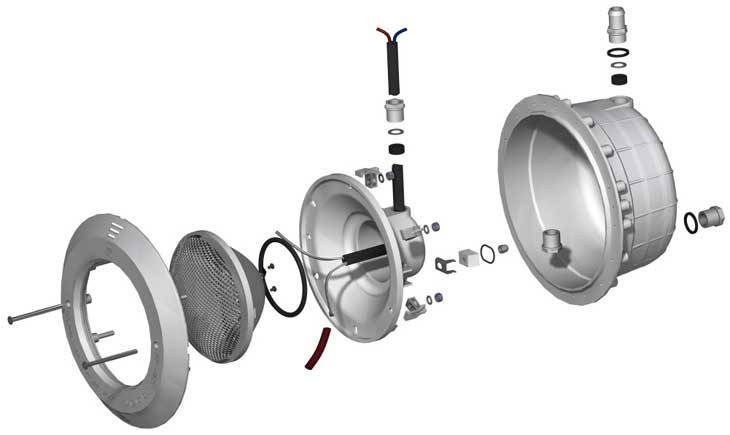

Spare Part List

"051115 | 051114, With Locking" List of Materials

return back
code description quantity price pieces weight volume
8500498 Nut For Cable Outlet 2 1.00 1
05111002 PAR56 - 300 W/12 V Bulb 1 18 12 8.194 0.046
0511106 2 x 4 TTR price per meter 3 5.78 100 21.200
051110021 PAR 56 Bulb Screw M4x8,5 2 0.00
05111104 Connection Terminal 5mm 1 0.75
05111111 Hose Connection 1 0.60
05111112 Blond Nut For Alternative Cable Outlet 1 0.60
05111113 Wire Protector Ø6 mm 1 0.00
860058 O-Ring For Bulb Cover, Ø90x11 mm 1 3.00
05111403 STD, 2002 Bulb Cover 1 6.00
05111407 STD, 2002 Fastening Clip 3 0.30
05111410 STD, 2002 Niche For Concrete Pools 1 18
051115001 STD, 2002 Light With Locking Mech, Face Ring 1 10
05111501 Conical Part For Locking 1 2.00
05111502 STD, 2002 Inox Claw For Locking 1 1.00
860099 STD, 95 Underwater Light Hose Connection Gasket 2 0.00
8500017 M6 Nut Din 934 3 0.00
8500020 M6 Inox Washer Din 126 For 3 0.00
860098 Lamp Cable Choke Gasket Ø 20x12x8 2 0.00
860228 Lamp Locking oring 23,44x1,78 1 0.00
8500016 M6 Blind Nut DIN1587 AISI 304 1 0.00
8500425 “Std 2002 -2004” lamp locking bolt M6x72-75 2 0.00
