Spare Part List

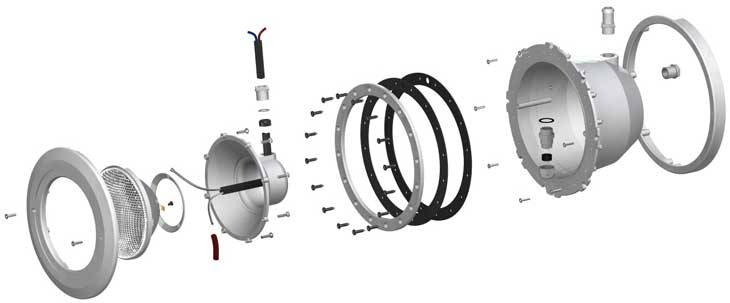

"052112 | Complete Light" List of Materials

return back
code description quantity price pieces weight volume
05111002 PAR56 - 300 W/12 V Bulb 1 18 12 8.194 0.046
0506104B Grey Plastic Union Body, PG16 1 1.00
0506104 Grey Plastic Union Screw, PG16 1 0.00
860038 Grey Union Joint, PG16 1 0.00
051110021 PAR 56 Bulb Screw M4x8,5 1 0.00
0511110 Cable Sealing Gasket For Anchor Nozzle 1 0.00
05111103 STD, 95 Bulb Cover 2 6.00
05111104 Connection Terminal 5mm 1 0.75
05111105 Ø 4,8x22 Cross Recessed Pan Head Screw Din 7981 5 0.00
05111113 Wire Protector Ø6 mm 1 0.00
860099 STD, 95 Underwater Light Hose Connection Gasket 1 0.00
052112001 STD, 2006 Hose Connection 1 0.00
052112002 Blond Nut For Alternative Cable Outlet 1 0.00
052112003 STD, 2006 Nut For Cable Outlet 1 0.00
05211201 STD, 2006 Light Face Ring 1 16
05211202 STD, 2006 Flange Connection Screw, 5x25 16 0.00
05211203 STD, 2006 Niche For Liner Pools 1 24
05211205 Flange For Liner Type STD, 2006 1 0.00
05211206 STD, 2006 Gasket For Flange 6 0.00
05211207C Screw For Niche Wheel Flange, Ø 4,2x25 DIN 7982 8 0.00
05211208 Face Ring Fixong Screw, Ø 4,8x22 2 0.00
05211210 STD,2002 Silicon Gasket For Bulb Cover 1 7.00
052112113 Wheel Flange For Fixation 1 8.00
05111060 STD, 2006 Cable 2x4mm  (CAOUTCHOUC) 4 0.00
860098 Lamp Cable Choke Gasket Ø 20x12x8 1 0.00
