Spare Part List

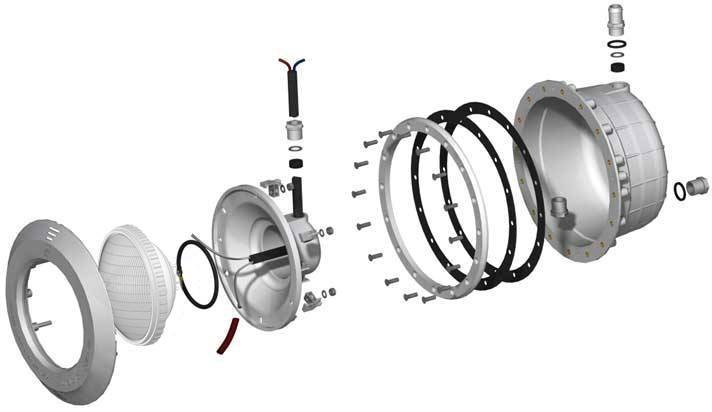

"052114BLS | Complete light, with 20 W – 63 SMD LED" List of Materials

return back
code description quantity price pieces weight volume
8500498 Nut For Cable Outlet 1 1.00 1
0511106 2 x 4 TTR price per meter 2 5.78 100 21.200
8500014 Inox Screw For Brass Females - M6x20 17 0.00
051110021 PAR 56 Bulb Screw M4x8,5 2 0.00
0511108 Cable Nut For Anchor Nozzle 1 0.00
05111111 Hose Connection 1 0.60
05111112 Blond Nut For Alternative Cable Outlet 1 0.60
05111113 Wire Protector Ø6 mm 1 0.00
05111401 Standard 2002 Face Ring 1 16
860058 O-Ring For Bulb Cover, Ø90x11 mm 1 3.00
05111403 STD, 2002 Bulb Cover 1 6.00
05111407 STD, 2002 Fastening Clip 3 0.30
860099 STD, 95 Underwater Light Hose Connection Gasket 4 0.00
05211402 Flange For Liner Type STD, 2002 1 3.00
860082 Gasket For Flange STD, 2002 3 2.00
052114B10 STD, 2002 Niche For Liner Pools Brass Insert 2 13
8500301 M6 Washer DIN 125 A2 3 0.00
8500017 M6 Nut Din 934 3 0.00
051113C-0531101 1 0.00
860098 Lamp Cable Choke Gasket Ø 20x12x8 1 0.00
05211114 Plastic Washer For 2x4 Cable 2 0.00
