Spare Part List

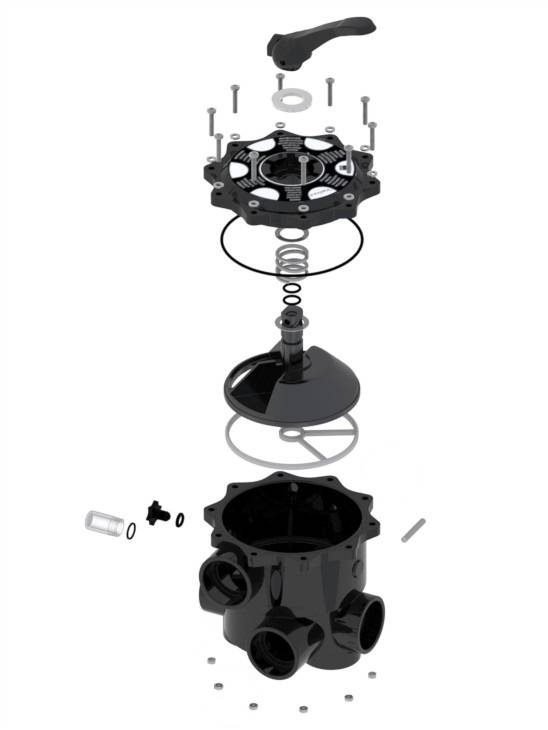

"02213027 | Ø 63 mm Slip Connections - Metric" List of Materials

return back
code description quantity price pieces weight volume
02100005 Air Purge 3 1.4
860269 Air Purge O-Ring 3 0,3
0221302701 2'' Valve Rotation Disk 6 10
0221302702 Star Gasket For 2'' Rotation Disk 2 4.00
0221302703 2'' Multiport Valve Handle 3 30.00
0221302704 2'' Multiport Top Body 5 16.00
0221302705 2'' Multiport Valve Body O-Ring 172x4 3 16.00
0240202 2 " Multiport Valve Handle Washer Plastic 3 0
0240209 1 ½" Multiport Valve Spring-Inox 6 8.00
0240216 1½ Multiport Valve Sight Glass 4 1
860289 1½ Multiport Valve Sight Glass Gasket 3 0,4
02403S01 1 ½" Multiport Valve Handle 3 8
02403S02 1 ½" Multiport Valve Handling Pin, M8x53 3 4
13111702 Ø 75 Pvc Ball Valve Handle Pim O-Ring 22x3.53 6 1
8500018 M6 Brass Nut 12 0,20
8500039 1 ½ Multiport Valve Body Bolt, Inox M6x35 20 0,8
0240208 (A-500) 2 "Multi Way Valve Spring Washer 2 0
8500327 M6x30 YHB Inox Bolt Dın 965 10 0,8
8500017 M6 Nut Dın 934 6 0,05
8500020 M6 Inox Washer Dın 126 For 33 0,1
860013 2" Multiport Valve Rotation Disk Gasket 1 10.00
