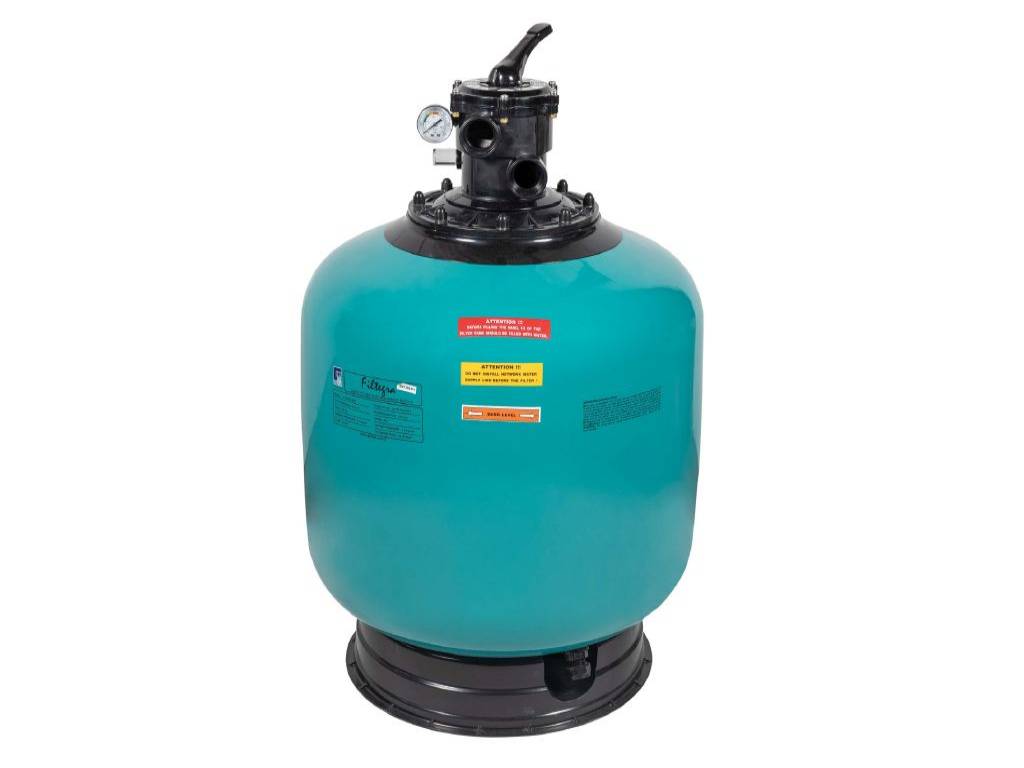

GEMAS “FILTEGRA” SAND FILTERS
GEMAS “FILTEGRA” SAND FILTERS

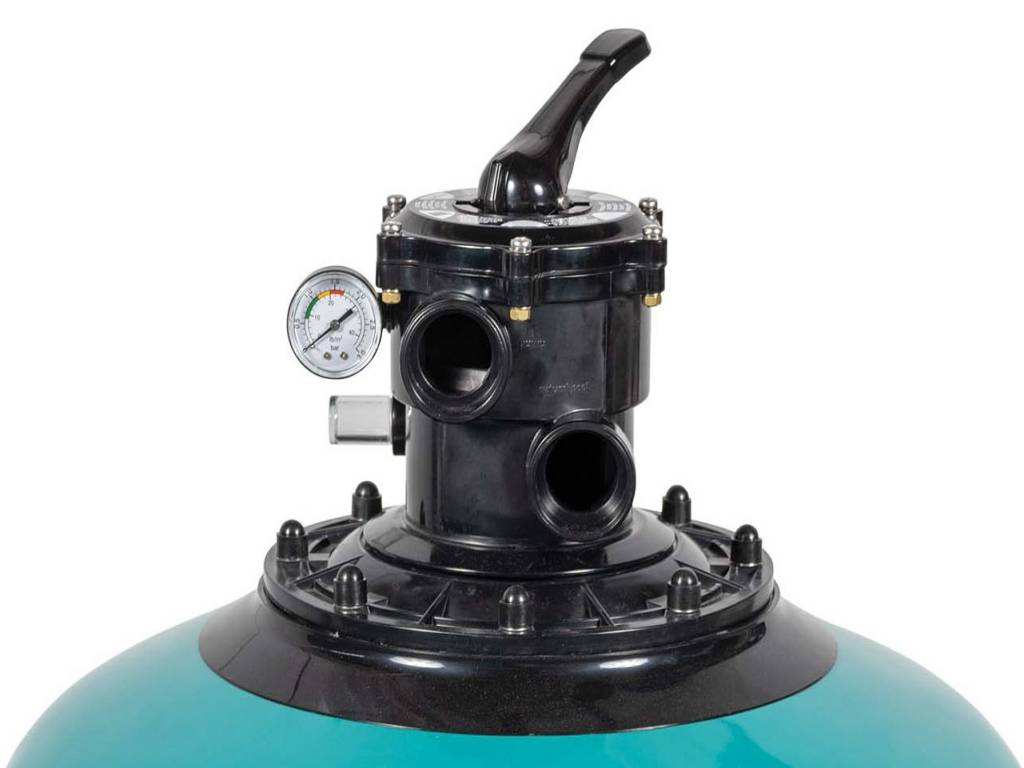

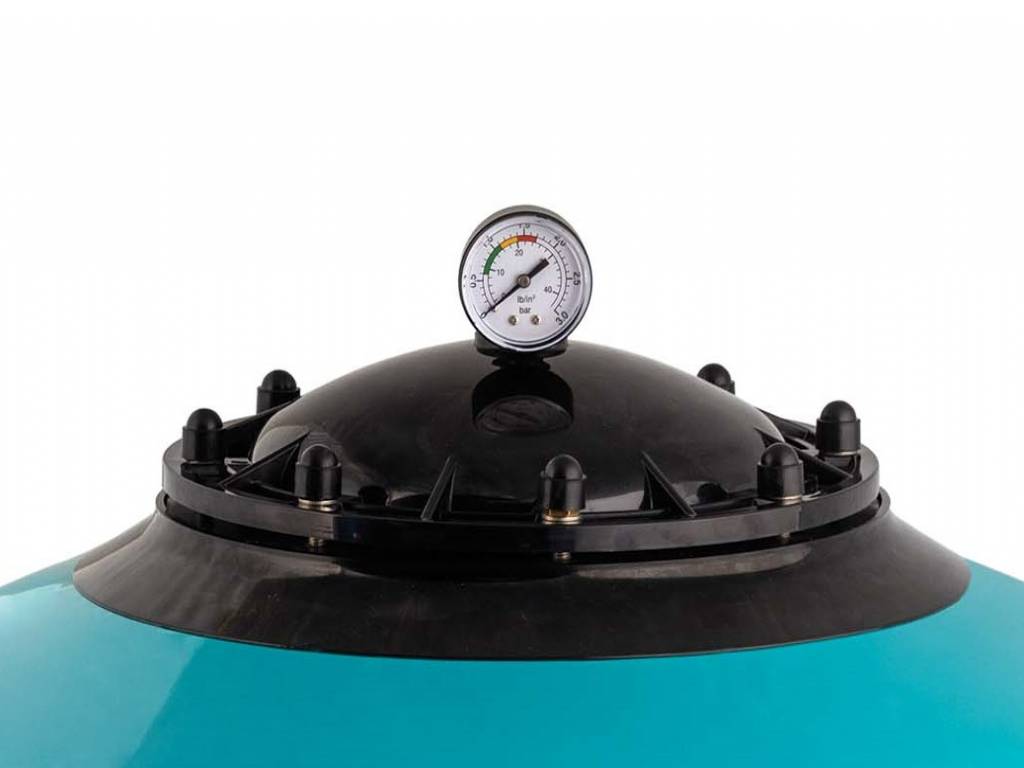

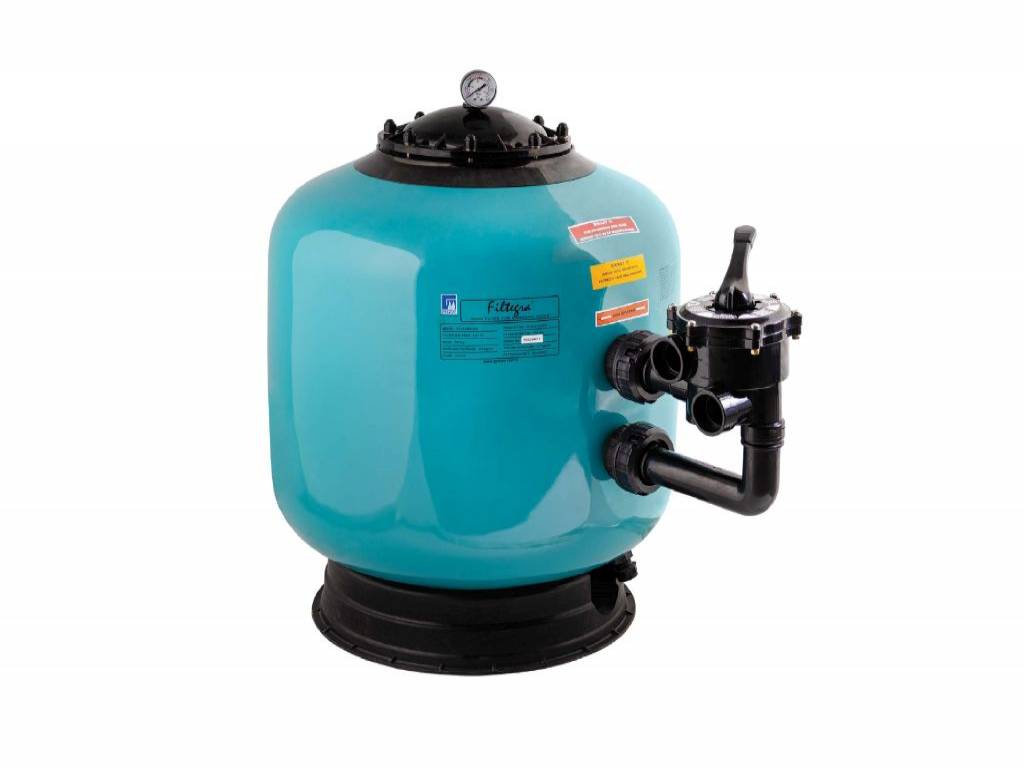

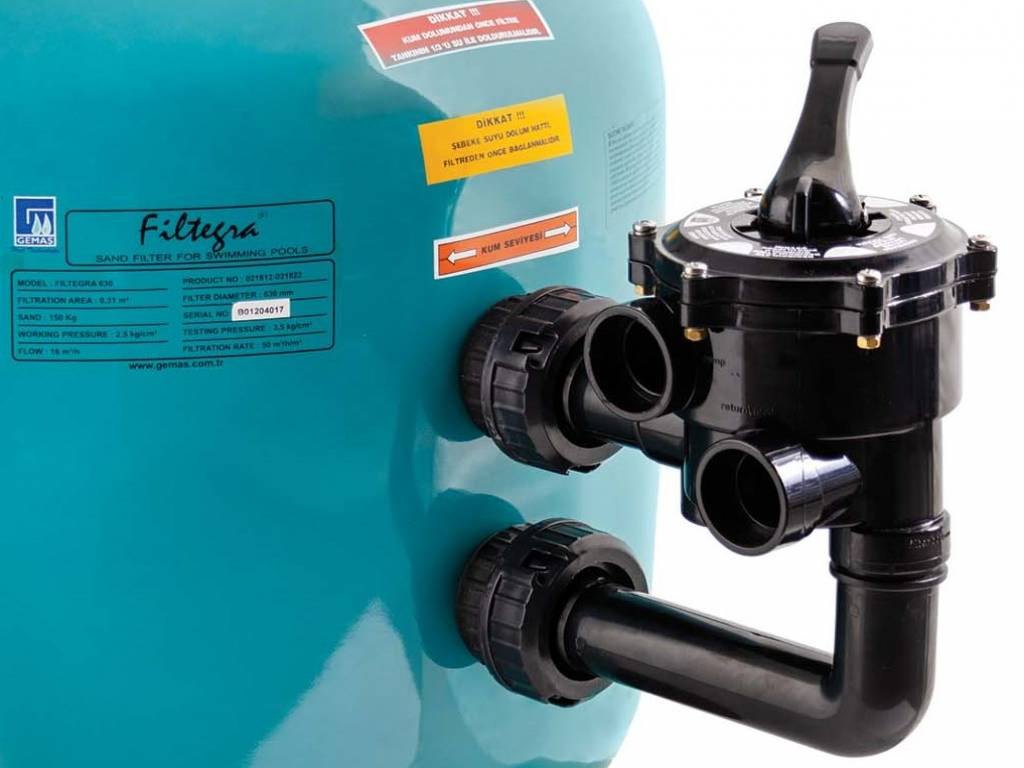

Filter Shell Made of Smooth ABS plastic which decreases algea and bacteria cling inside filter. Outer Shell is MONOBLOCK GELCOATED FR POLYESTER. UNLIKE THE UNIVERSAL LAMINATED FILTERS 2 PART BODY STRUCTURE, FILTEGRA HAS BEEN DESIGNED TO BE PRODUCED WITH A UNIQUE TECHNIQUE WHICH RESULTS A MONOBLOCK SMOOTH, GELCOATED OUTER BODY. Complete with pressure gauge and side mounted multiport valve. Maximum Working Pressure 2,5 kg /cm2. Test Pressure 4 kg/cm2. Filtration Rate 50 m3/h/m2. 10 YEARS SHELL WARRANTY
| description | code | price (€) |
pieces (box) |
weight (kg) |
volume (m³) |
|---|---|---|---|---|---|
| Ø 560 mm Geniş Kapak - 11/2” yandan çok yollu vanalı - 12 m3/h | 021812LL | 231.00 | 1 | 21.000 | 0.215 |
| Ø 1000 mm Geniş Kapak - vanasız, 2 1/2” bağlantı - 40 m3/h | 021817LL | 578.00 | 1 | 55.000 | 0.930 |
| GEMAS “FILTEGRA” SAND FILTERS Ø 500 mm - 11/2” multiport valve - 10 m3/h | 021811 | 325.48 | 1 | 19.000 | 0.215 |
| GEMAS “FILTEGRA” SAND FILTERS Ø 500 mm - 11/2” top multiport valve - 10 m3/h | 021821 | 276.04 | 1 | 17.000 | 0.215 |
| GEMAS “FILTEGRA” SAND FILTERS Ø 630 mm - 11/2” top multiport valve - 15 m3/h | 021822 | 340.93 | 1 | 21.000 | 0.325 |
| GEMAS “FILTEGRA” SAND FILTERS Ø 710 mm - 11/2”” top valve - 20 m3/h | 021827 | 1.03 | 1 | 33.000 | 0.440 |
User and Installation Guide |
|
| Kullanım Kılavuzu | downloads |
Technical Data Sheet / Brochure |
|
