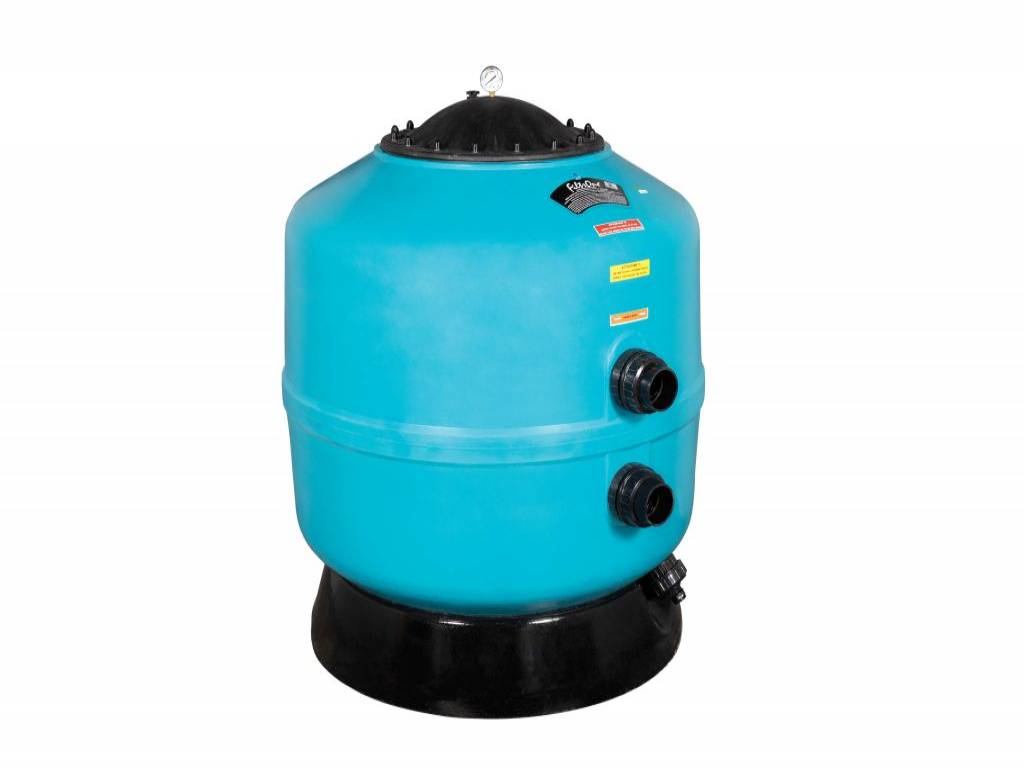

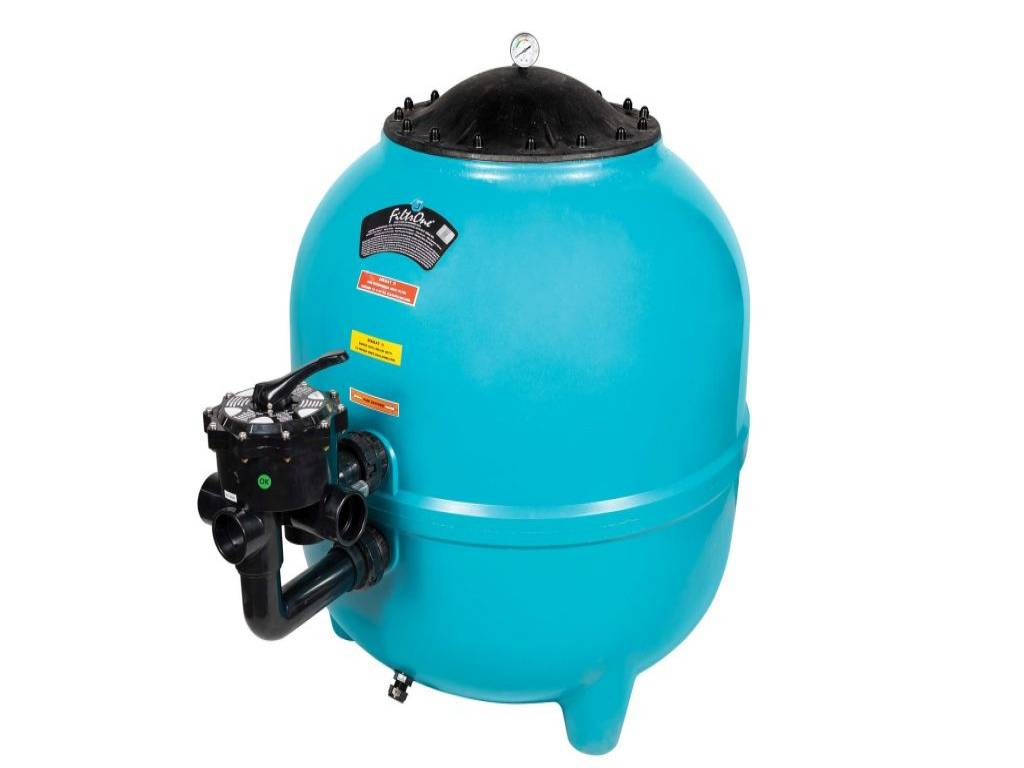

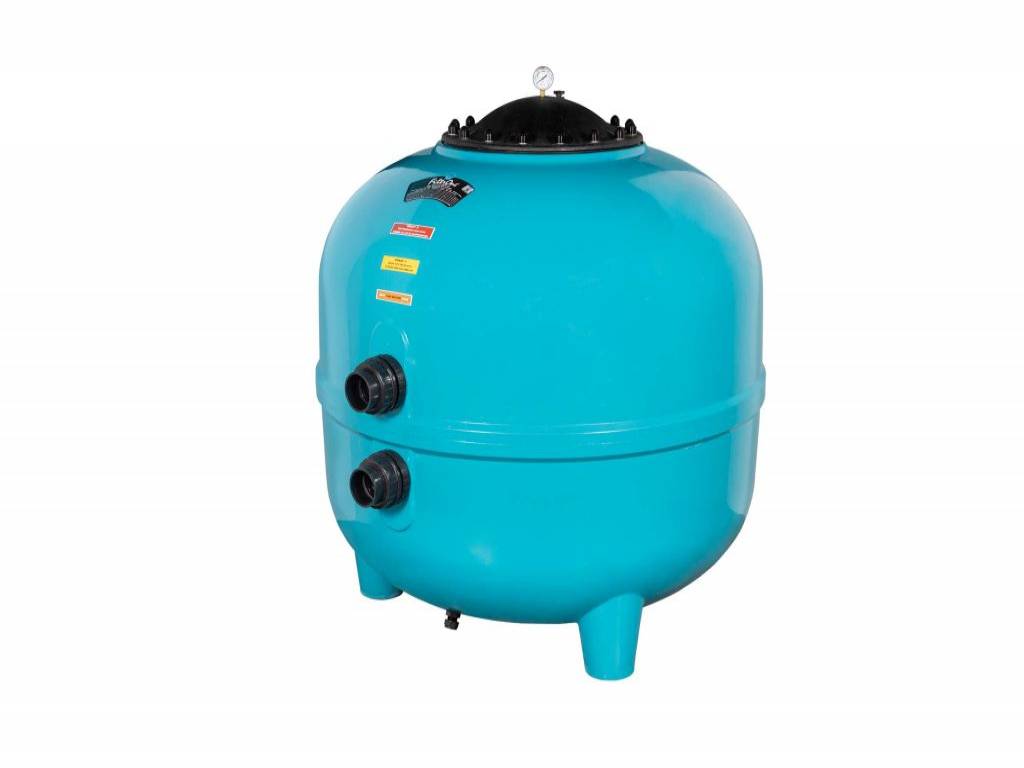

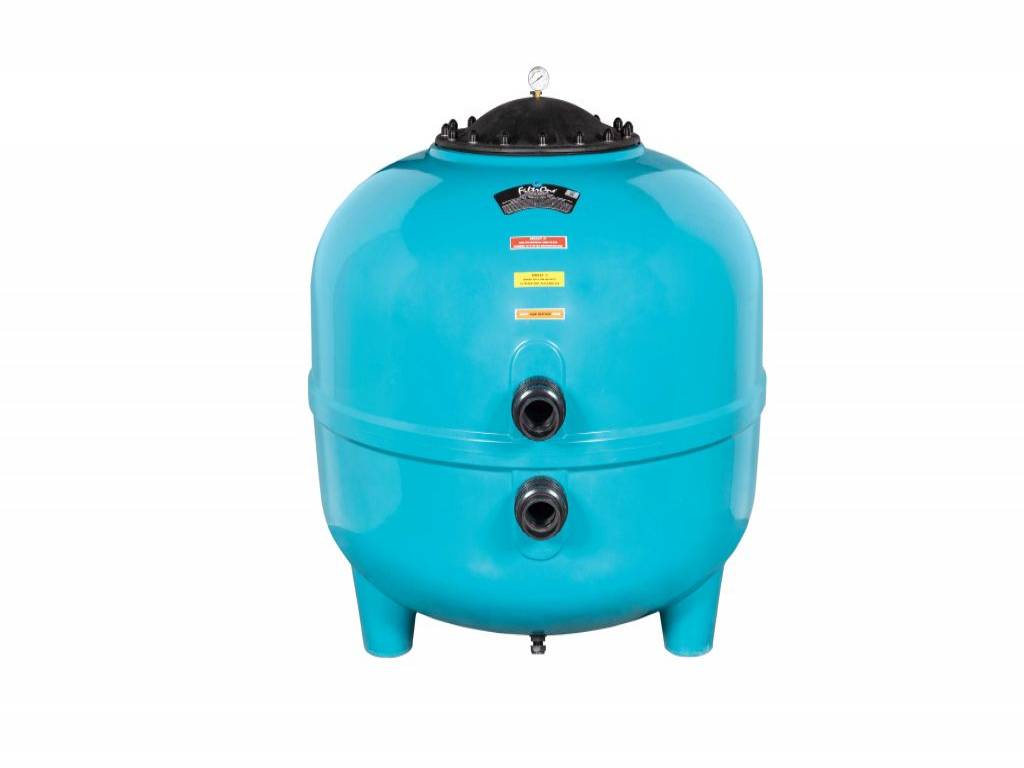

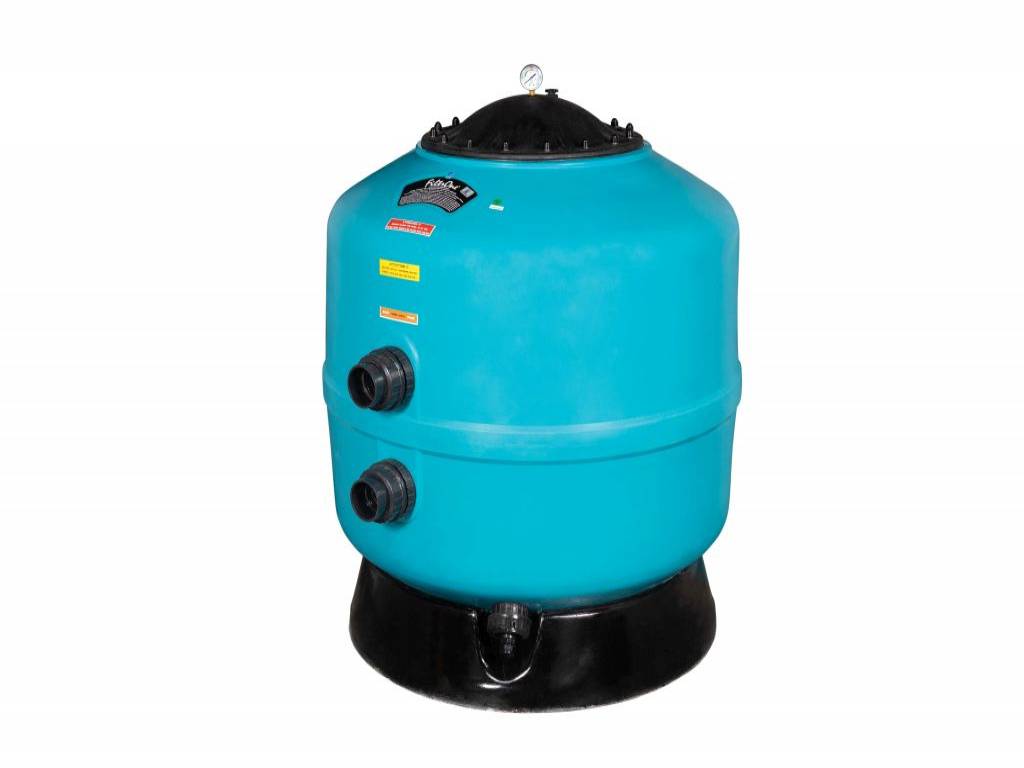

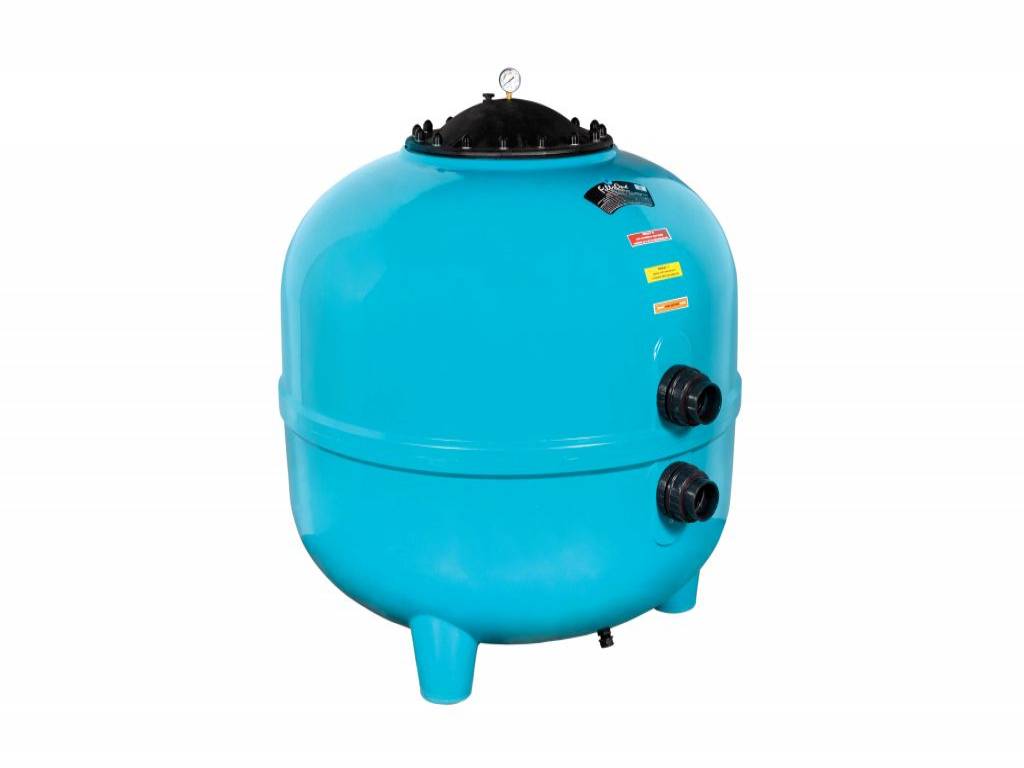

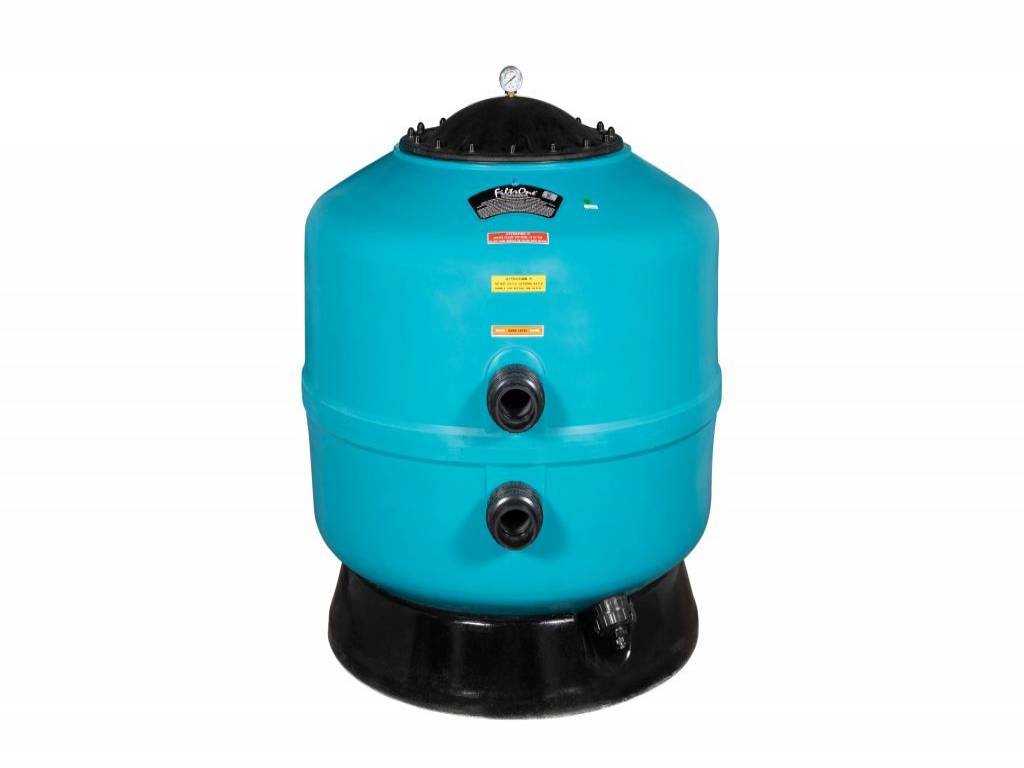

GEMAS “FILTRONE L” PE PLASTIC SAND FILTERS
GEMAS “FILTRONE L” PE PLASTIC SAND FILTERS
Filter shell made of PE Plastic by Rotational Moulding. One-piece body, large lid of 40 cm width including pressure gauge, side mounted multiport valve and air purge. Test pressure 3,5 kg/cm². Max. operation pressure 2,5 kg/cm². Filtration rate: 50 m³/h/m³.
| description | code | price (€) |
weight (kg) |
volume (m³) |
SPARE PART
|
|---|---|---|---|---|---|
| Ø615 mm - Large lid. 1,5" multiport side valve - 15 m³/h | 021813LL | Sign in to see the price | 23.000 | 0.325 | View |
| Ø760 mm - Large lid. 2" multiport side valve - 22 m³/h | 021814LL | Sign in to see the price | 30.000 | 0.440 | |
| Ø920 mm - Large lid. 2" multiport side valve - 33 m³/h | 021815LL | Sign in to see the price | 48.000 | 0.790 | |
| Ø1000 mm - Large lid. without multiport valve 2,5" - 39 m³/h | 021817LL | Sign in to see the price | 55.000 | 0.930 | |
| Ø1200 mm - Large lid. without multiport valve 2,5" - 56 m³/h | 021816LL | Sign in to see the price | 75.000 | 1.160 | |
| Ø 560 mm - Large liØ 1 1/2" multiport side valve - 12 m3/h | 021812LL | Sign in to see the price | 21.000 | 0.215 |
