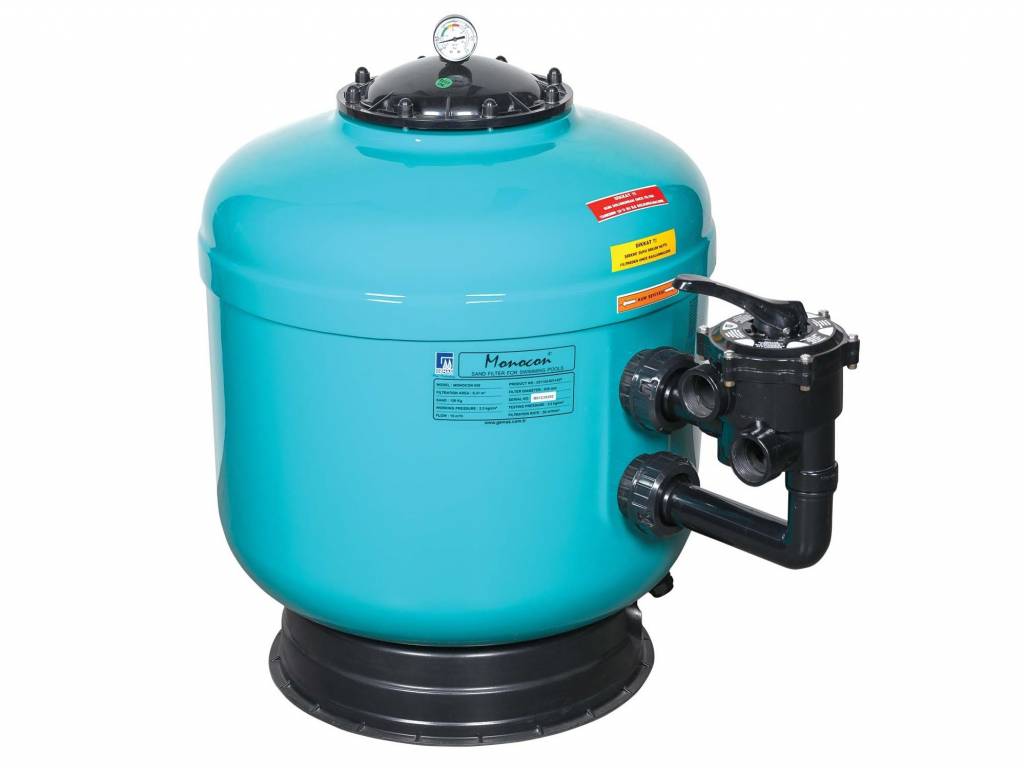

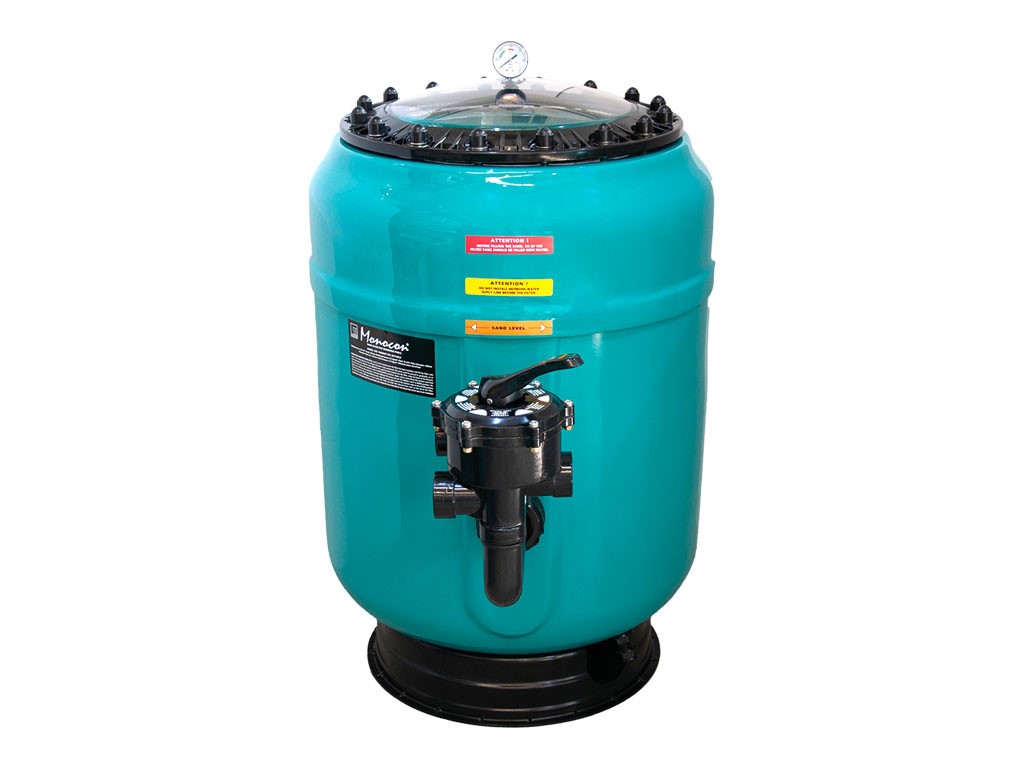

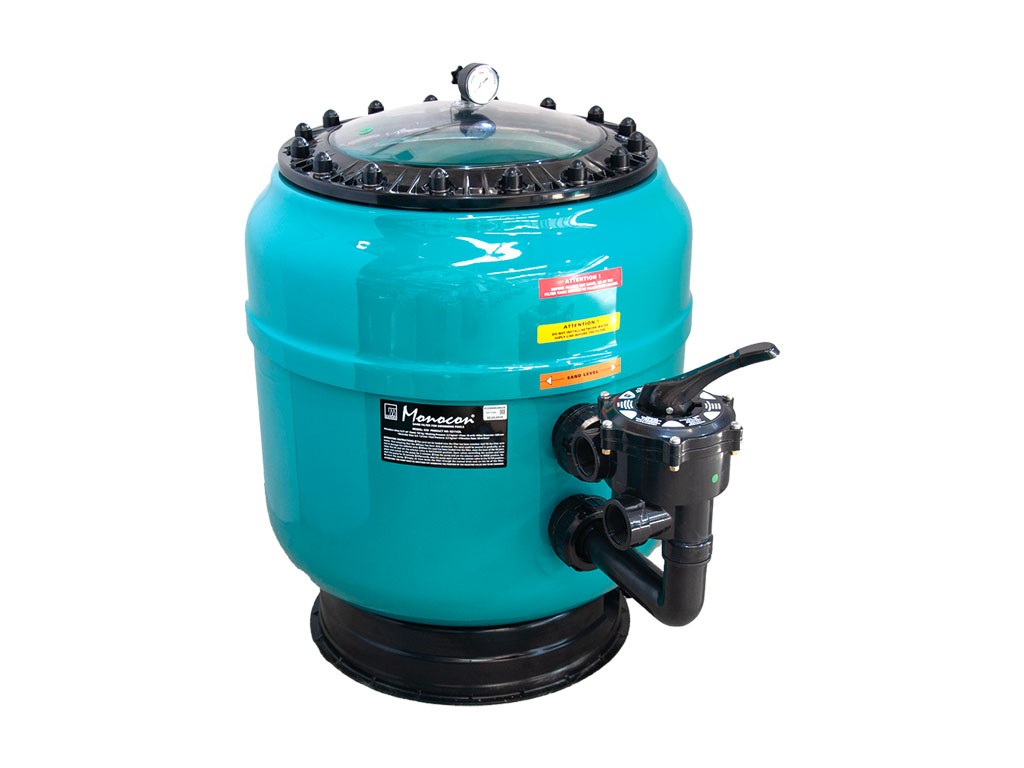

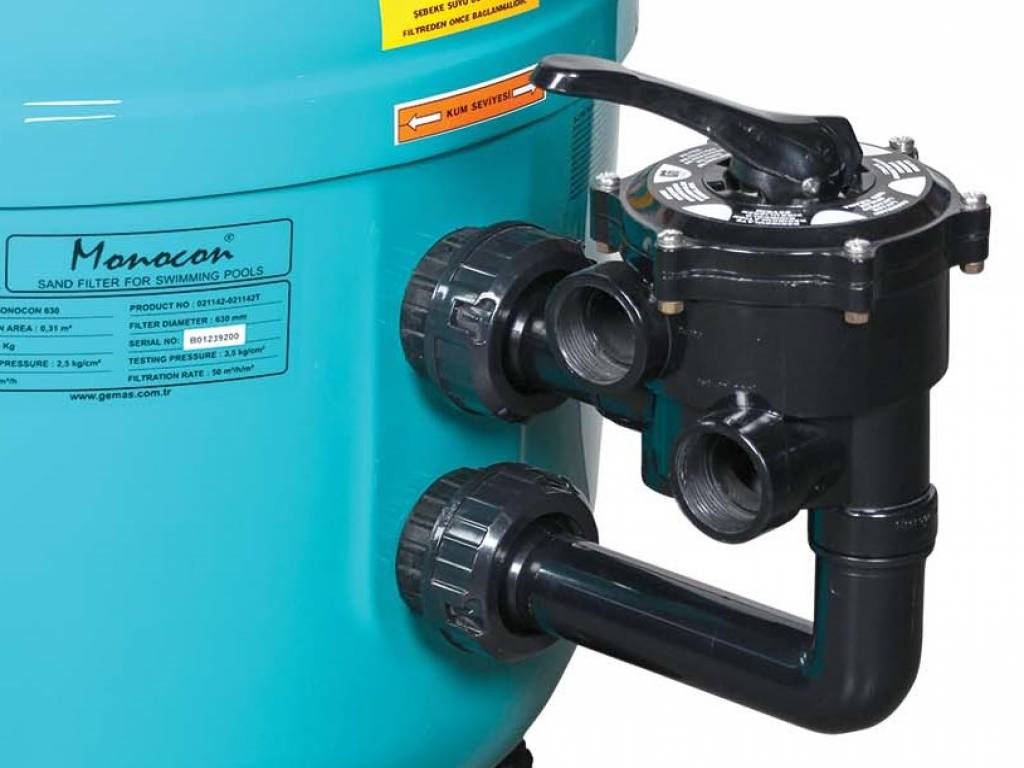

Filter shell made of fiberglass reinforced polyester, complete with multi-way valve, fittings, manometer and purge. Max. operation Pressure 2,5 kg/cm². Test pressure: 3.5 kg/cm². Two years warranty. All models have side valve connection. Both connections of the filter are on the bottom shell of the filter. Filtration Rate: 50 m³/h/m². Transparent Bolted Lid (optional).
description | code | price (€) |
weight (kg) |
volume (m³) |
SPARE PART
|
---|---|---|---|---|---|
Ø500 mm - 1,5" m.valve | 021141 | Sign in to see the price | 17.000 | 0.215 | View |
Ø630 mm - 1,5" m.valve | 021142 | Sign in to see the price | 22.800 | 0.325 | View |
Ø710 mm - 2" m.valve | 021143 | Sign in to see the price | 30.000 | 0.470 | View |
Ø830 mm - 2" m.valve | 021144 | Sign in to see the price | 38.600 | 0.665 | View |
Ø900 mm - 2" m.valve | 021145 | Sign in to see the price | 46.300 | 0.905 | View |

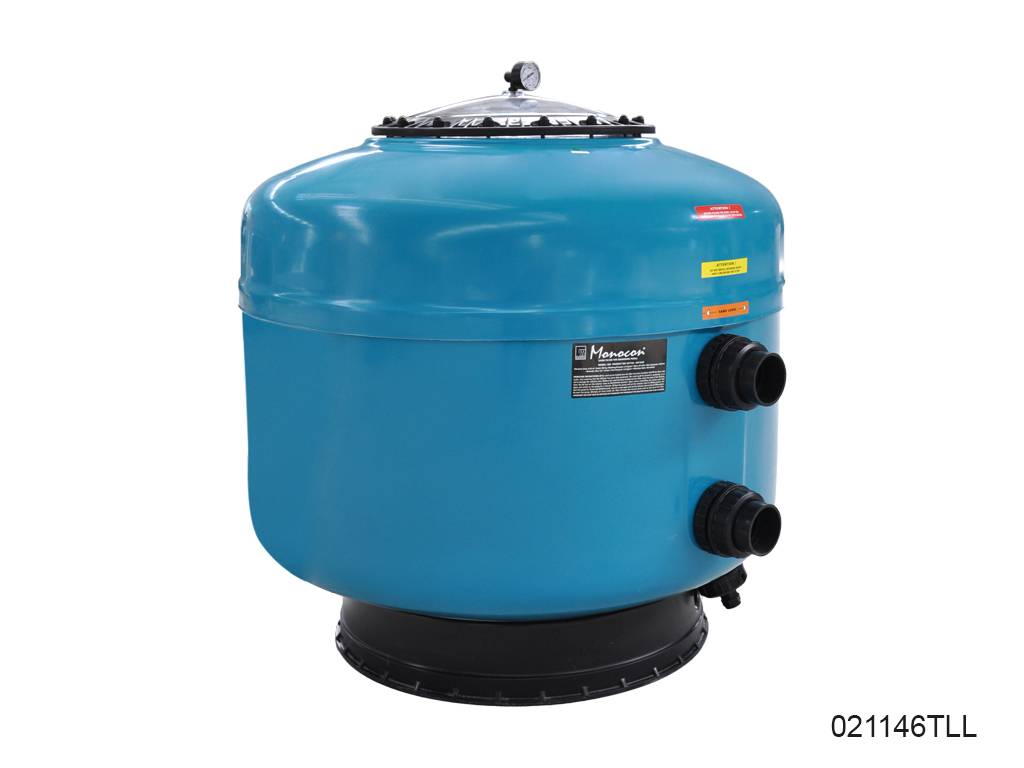

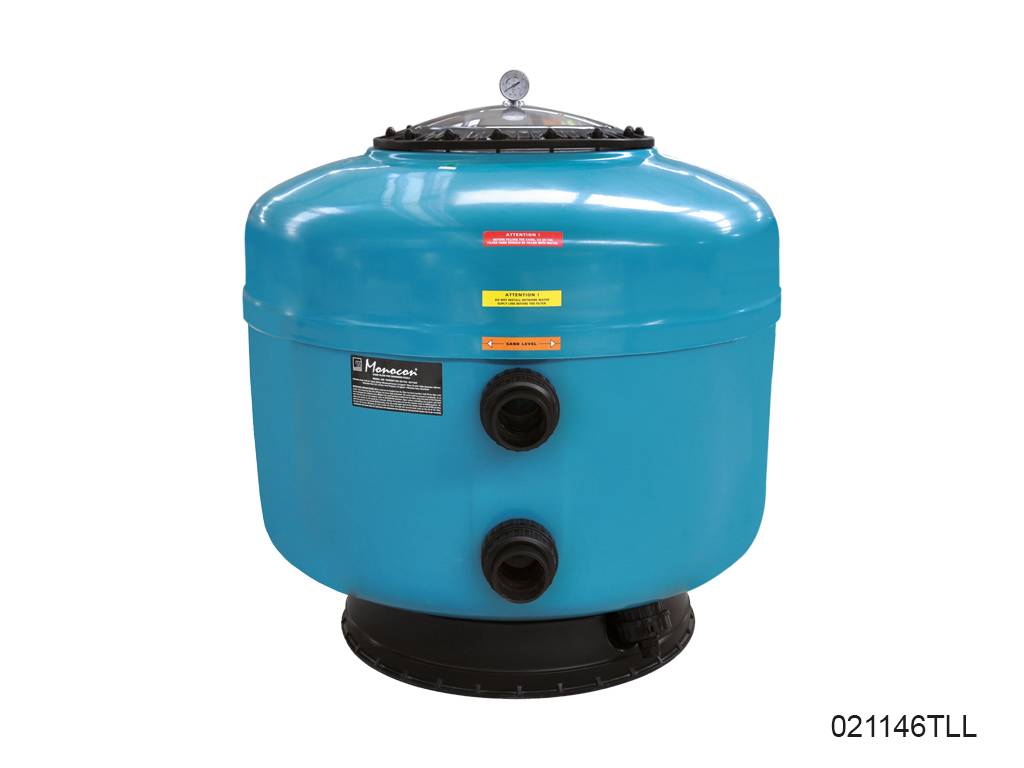

Ø1000 mm - 2" "w/out m.way Valve" | 021146 | Sign in to see the price | 63.200 | 1.021 | View |
Ø1200 mm - 2" "w/out m.way valve" | 021147 | Sign in to see the price | 78.500 | 1.460 | View |
Ø500 Monocon FRP Sand Filter with Side mounted multi-way valve 1 1/2" (Transparent Bolted Lid) | 021141ST | Sign in to see the price | View | ||
Ø630 Monocon FRP Sand Filter with Side mounted multi-way valve 1 1/2" (Transparent Bolted Lid) | 021142ST | Sign in to see the price | View | ||
Ø710 Monocon FRP Sand Filter with Side mounted multi-way valve 2" (Transparent Bolted Lid) | 021143ST | Sign in to see the price | View | ||
Ø830 Monocon FRP Sand Filter with Side mounted multi-way valve 2" (Transparent Bolted Lid) | 021144ST | Sign in to see the price | View | ||
Ø900 Monocon FRP Sand Filter with Side mounted multi-way valve 2" (Transparent Bolted Lid) | 021145ST | Sign in to see the price | View | ||
021141L | Sign in to see the price | ||||
021141LH | Sign in to see the price | ||||
021143L | Sign in to see the price | ||||
021143LH | Sign in to see the price | ||||
021142L | Sign in to see the price | ||||
021142LH | Sign in to see the price |
User and Installation Guide |
||
User Guide | 021142 021143 021144 021145 021141 021146 021147 | |
Technical Data Sheet / Brochure |
||
Certificates of Quality |
||
