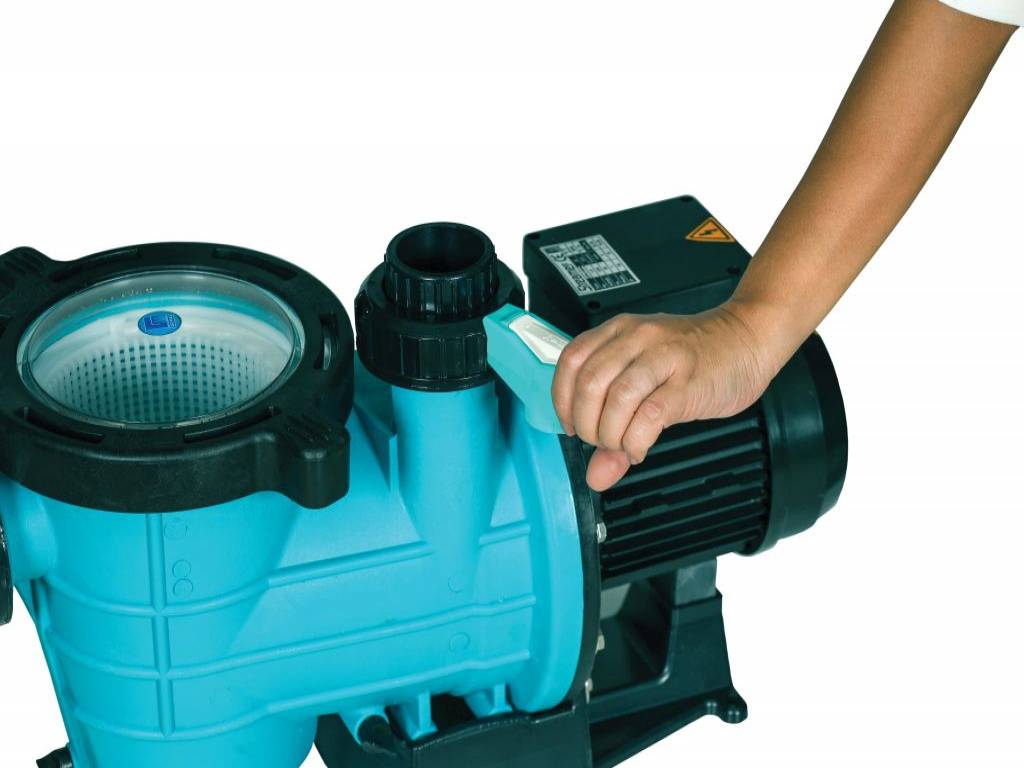

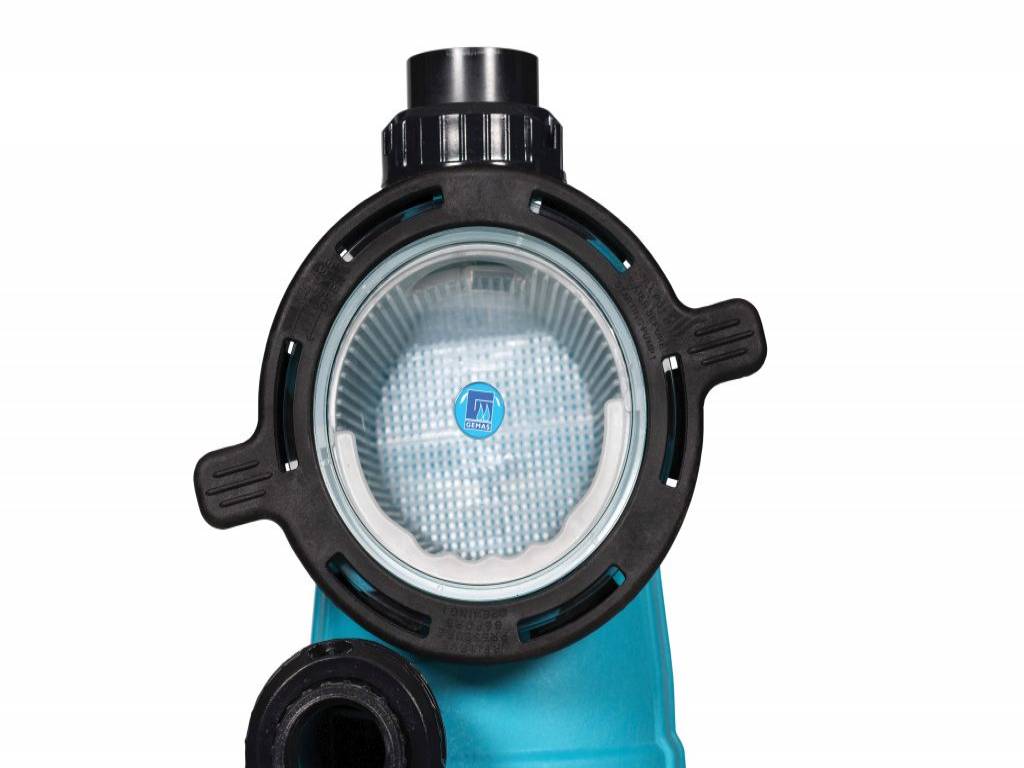

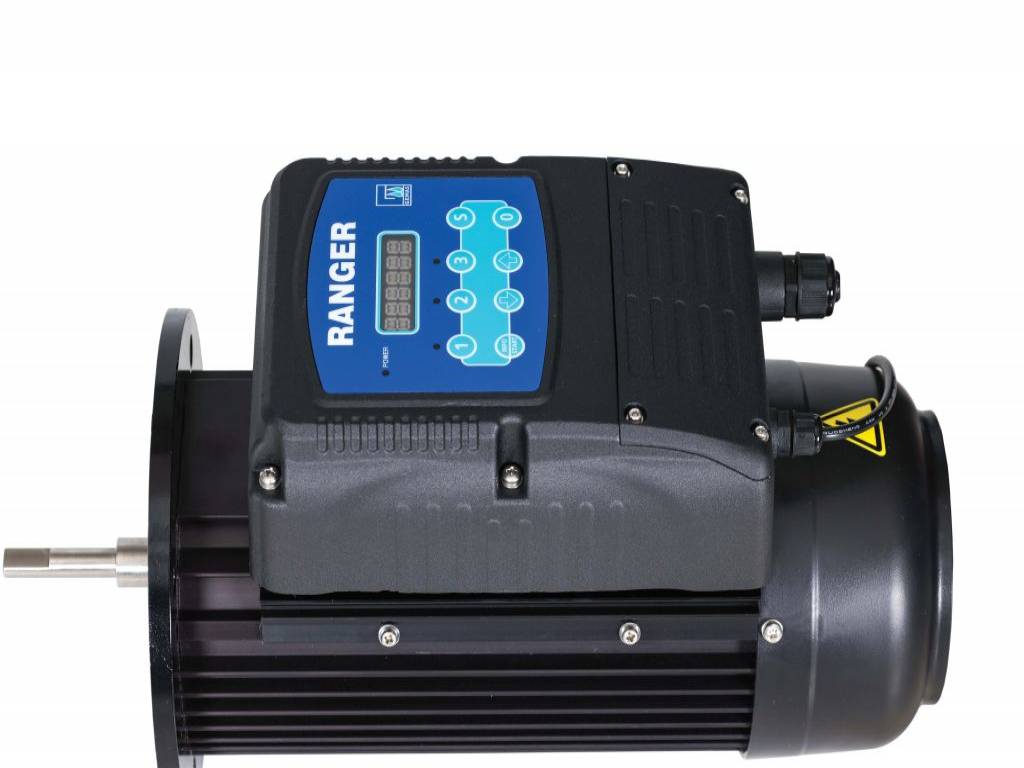

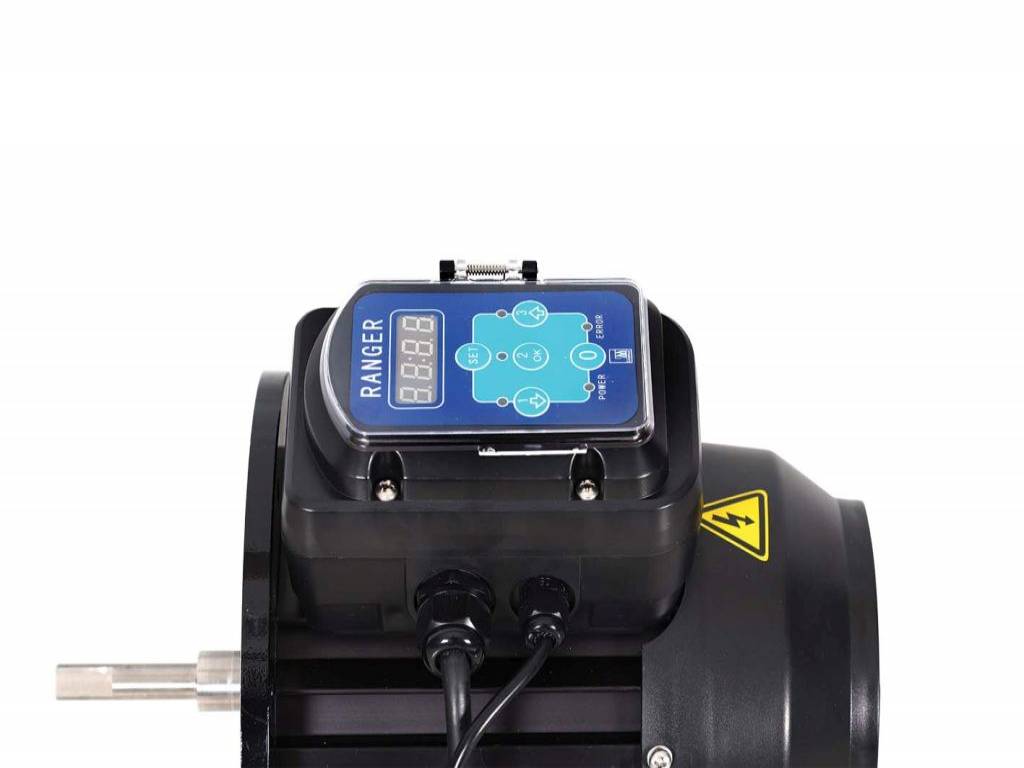

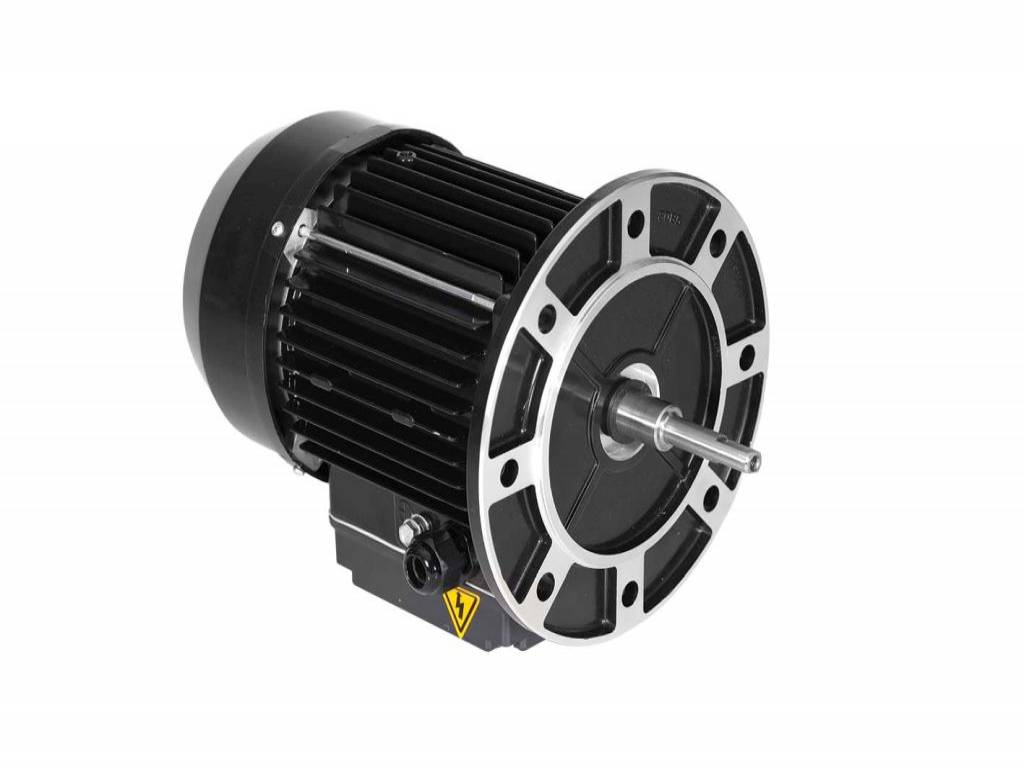

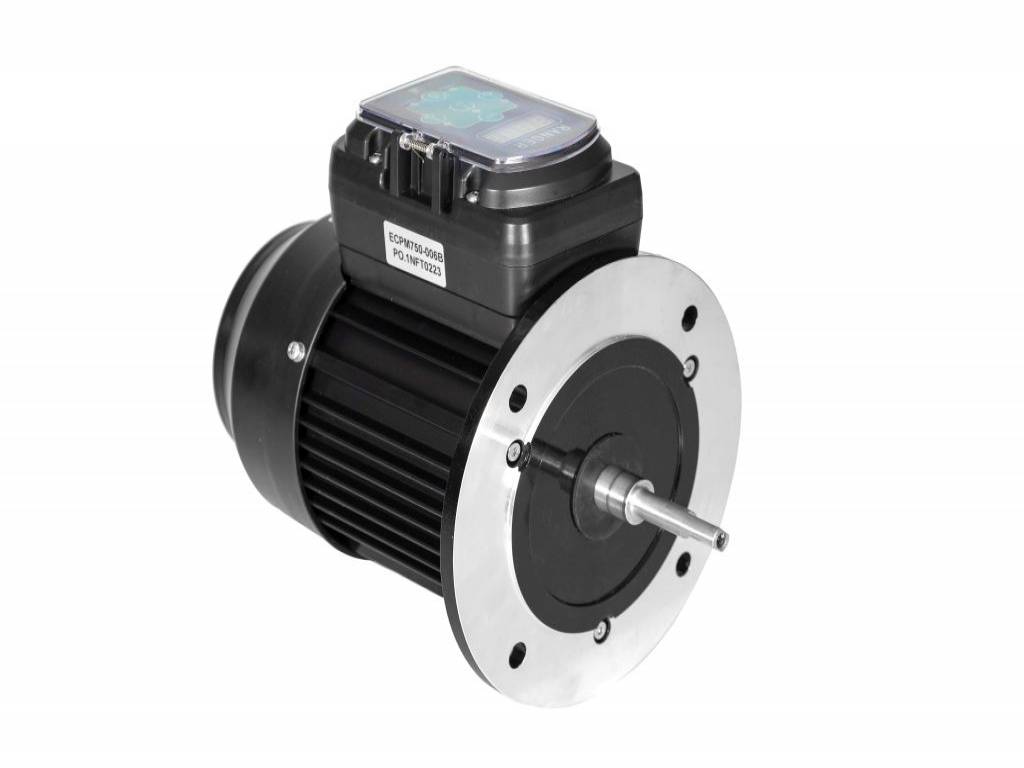

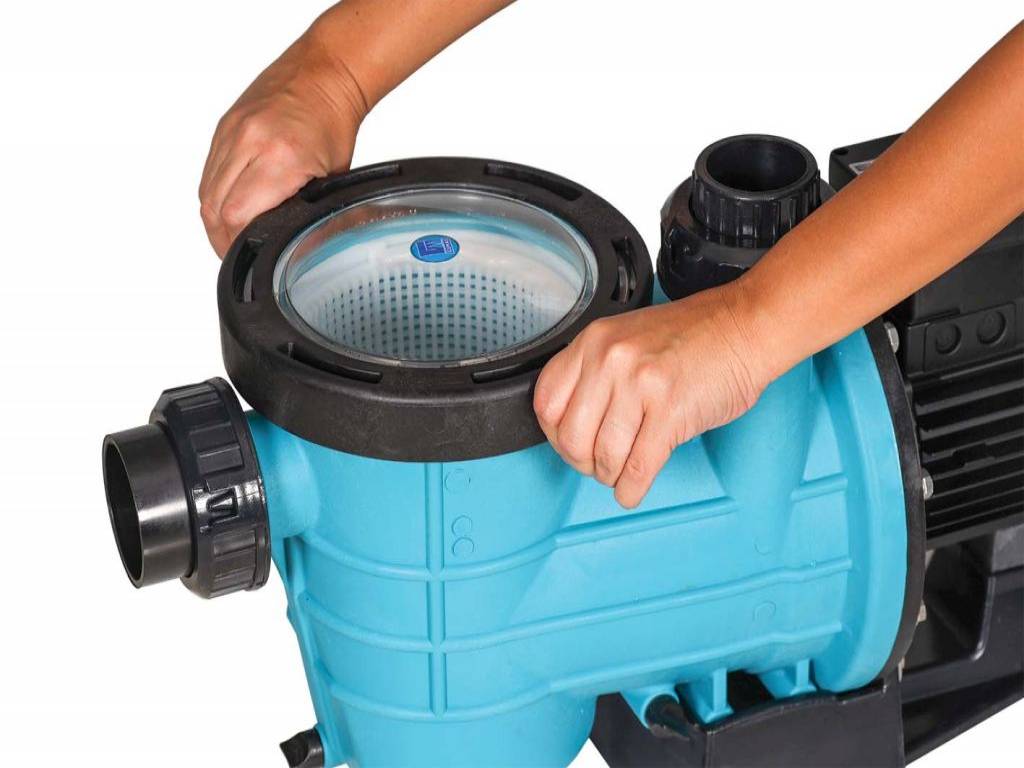

Self-priming, thermoplastic body pump with monoblock pre-filter. Connections are with unions; 1,5 HP model - suction Ø is 1,5" and discharge Ø is 2". 3 HP Model - both suction and discharge Ø are 2". Pump shaft is stainless steel. Easy opening lid with 40° rotation. “Transparent “Xylex” cover option for high chemical resistance against cracks. 4,5 l pre-filter basket much larger than its equivalents. Pump connection fittings can be tightened and opened with 50 mm Fitvalf ball valve handle. Three cycles, allowing to choose between 1400-2850 cycles. Factory settings: 1st cycle - 2100 rpm, 2nd cycle - 2400 rpm, 3rd cycle - 2850 rpm. Permanent Magnet - IP55 motor. Cable connection is available for speed control from the external panel. Motors are single-phase input. It has soft start and stop features.

description code price
RN-150M 1,5 HP, Monophase 0111RN150M Sign in to see the price 13.650 0.051 View
RN-300M 3,0 HP, Monophase 0111RN300M Sign in to see the price 19.050 0.051

User and Installation Guide

Instructions for use

Technical Data Sheet / Brochure

Technical Document

Certificates of Quality
