GEMAS Titanium Plate Exchanger

GEMAS Titanium Plate Exchanger GEMAS Titanium Plate Exchanger

GEMAS Titanium Plate Exchanger

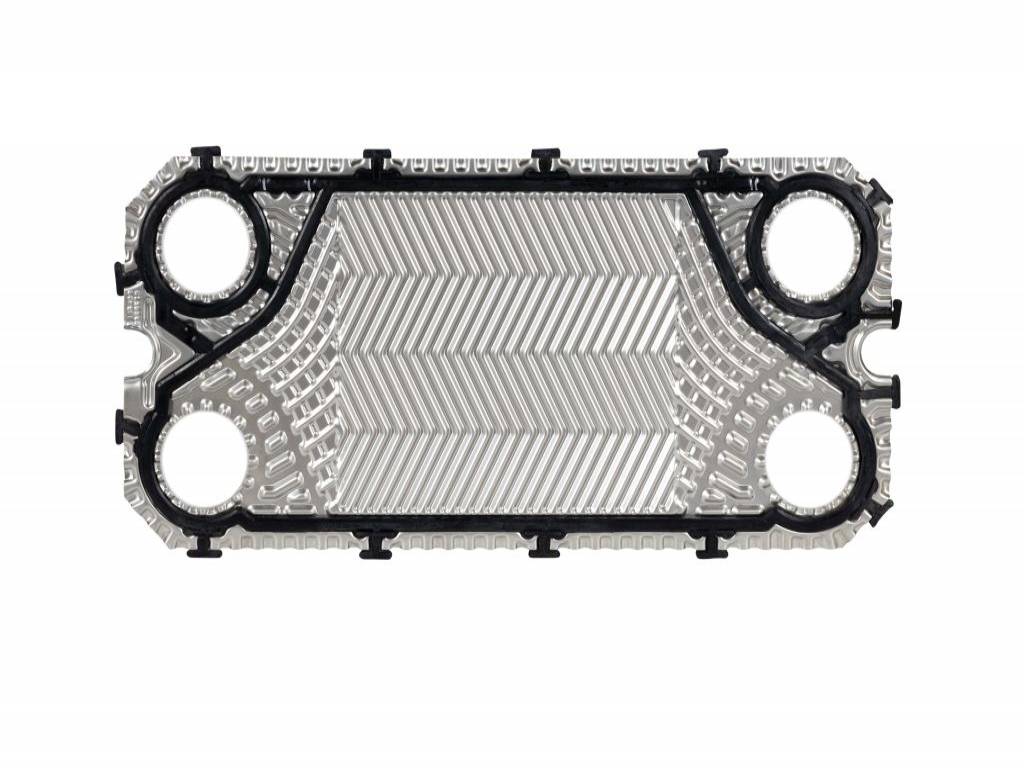

Titanium plates resistent to sea water. Seals of nitrile or EPDM. Operated by 90-70°C hot water from boiler. Max pressure 10 bars, max temperature 130°C. Pressure losses from the side of the pool and the boiler are shown below separately for each capacity.

description code price
(€)		 weight
(kg)		 volume
(m³)		 SPARE PART
40,000 kcal/h: Pool side 1,02 mwh -Boiler side 1,00 mwh 2,00 - 2,00 m3/h 6 pl. 101231T Sign in to see the price 34.500
65,000 kcal/h: Pool side 1,16 mwh -Boiler side 1,20 mwh 3,20 - 3,30 m3/h 8 pl. 101232T Sign in to see the price 35.900
90,000 kcal/h: Pool side 1,28 mwh -Boiler side 1,29 mwh 4,50 - 4,60 m3/h 10 pl. 101233T Sign in to see the price 64.000
110,000 kcal/h: Pool side 1,21 mwh -Boiler side 1,90 mwh 5,50 - 5,60 m3/h 11 pl. 101234T Sign in to see the price 65.200
130,000 kcal/h: Pool side 1,18 mwh -Boiler side 1,71 mwh 6,50 - 6,60 m3/h 13 pl. 101235T Sign in to see the price 85.600
150,000 kcal/h: Pool side 1,55 mwh -Boiler side 1,60 mwh 7,50 - 7,70 m3/h 14 pl. 101236T Sign in to see the price 87.200
180,000 kcal/h: Pool side 1,65 mwh -Boiler side 1,70 mwh 9,00 - 9,20 m3/h 16 pl. 101237T Sign in to see the price 87.200
225,000 kcal/h: Pool side 1,58 mwh -Boiler side 1,63 mwh 11,00 - 11,00 m3/h 20 pl. 101238T Sign in to see the price 88.800
300,000 kcal/h: Pool side 1,63 mwh -Boiler side 1,97 mwh 15,00 - 15,40 m3/h 25 pl. 101239T Sign in to see the price
400,000 kcal/h: Pool side 1,71 mwh -Boiler side 1,97 mwh 20,00 - 20,50 m3/h 33 pl. 101240T Sign in to see the price
500,000 kcal/h: Pool side 1,81 mwh -Boiler side 1,87 mwh 25,00 - 26,00 m3/h 41 pl. 101241T Sign in to see the price
700.000 kcal/h: Pool side 1,14 mwh -Boiler side 1,88 mwh 27,00 - 36,00 m3/h 62 pl. 101242T Sign in to see the price
