Pool Control Mono/Tri - Elektronic Control Boards

Pool Control Mono/Tri - Elektronic Control Boards

“POOL CONTROL MONO”. Fully electronic, 7 segment display, pool electrical control panel.
It controls single-phase pumps from 0.33 Hp to 2.0 Hp and 1 group of 100 W / 12 V lights
(up to 4 pieces). Complete with 100 W or 200 W / 12 V Analogue transformer.

“POOL CONTROL TRI”. Fully electronic, 7 segment display, pool electrical control panel.
It controls tri-phase pumps up to 0.33 Hp and 1 group of 100W / 12V lights (up to 4 pieces).
Complete with 100 W or 200 W / 12 V Analogue transformer.

Technical Specifications:
• Controlled automatic operation is possible for pumps and lights. While the system is operating, it can pass from automatic control to manual or manual control to automatic without interrupting the system.
• Wrong Connection Protection: In case of a wrong connection in the connection box of the motor, it gives a short circuit warning and prevents the motor from starting. It stops the motor in case of a short circuit in the motor windings for any reason. (For example, the motor is submerged)
• Thermal Current Protection: The current drawn by the motor can be defined with a precision between 10% and 50%. In case of excessive current out of tolerance, the motor is disabled.
• Closed Valve Protection: It deactivates the motor using current control if the valves in the pump suction and / or discharge lines are closed by error. Thus, it eliminates the risk of damage caused by overheating.

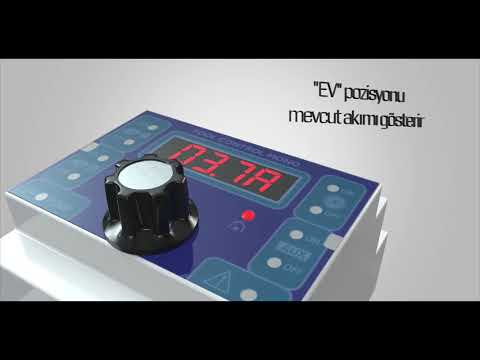

• Ampere Reading: It allows seeing the current drawn by the pump motor at any time. All controls are disabled in this mode.
• Working Time: Possibility to see the total working time as year-month-day-hour-minute on the indicator from the first commissioning of the pump. Also uninterrupted working time display from last on.
• Time Counter: Possibility to start-stop the pump automatically for the desired time with the help of the meter.
• Light Control and Toroidal Transformer: 1 group 100 W or 200 W / 12 V light output and Toroidal transformer.
• Spare Pump Connection: Possibility of conversion to spare pump with a button.

description code price
(€)
pieces
(box)
weight
(kg)
volume
(m³)
SPARE PART
Pool Control Mono; (Max. 100 W) 1 Pump (+1 spare)+1 Gr. Light 0507311 Sign in to see the price 1
050731, (Max. 200 W) 0507312 Sign in to see the price 1
Pool Control Tri; (Max. 100 W) 1 Pump (+1 spare)+1 Gr. Light 0507311T Sign in to see the price 1
0507311T, (Max. 200 W) 0507312T Sign in to see the price 1
Modul Control 050731101 Sign in to see the price 1
