“TURBIDRON” BOBBIN WOUND HORIZONTAL FILTERS

“TURBIDRON” BOBBIN WOUND HORIZONTAL FILTERS

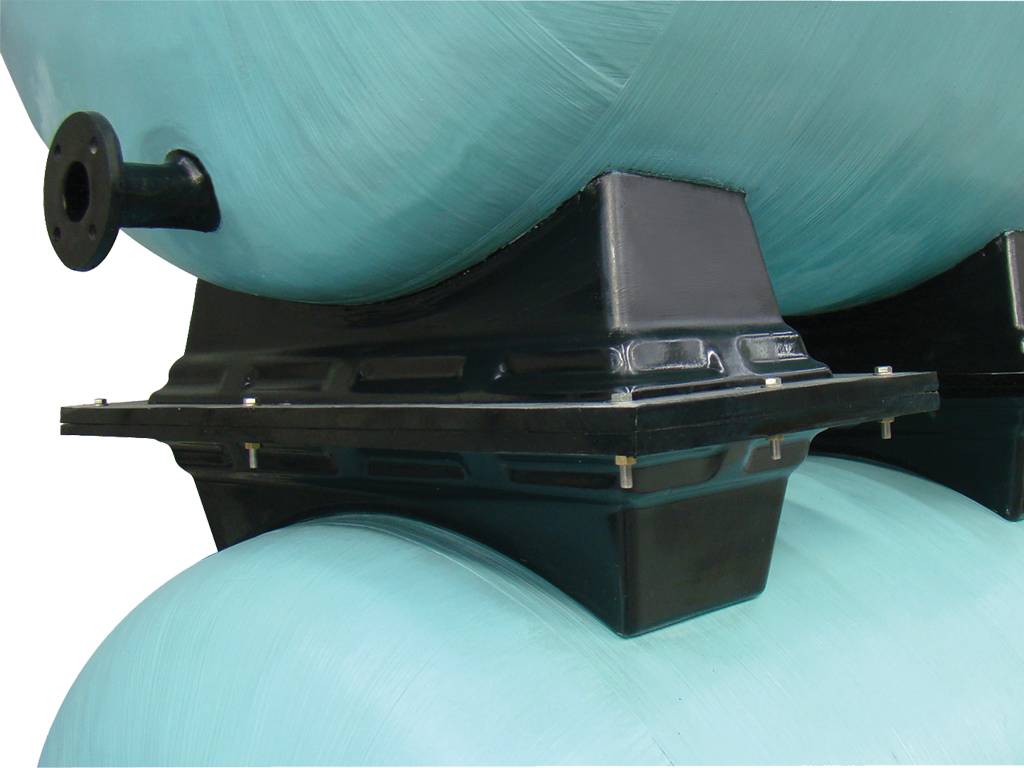

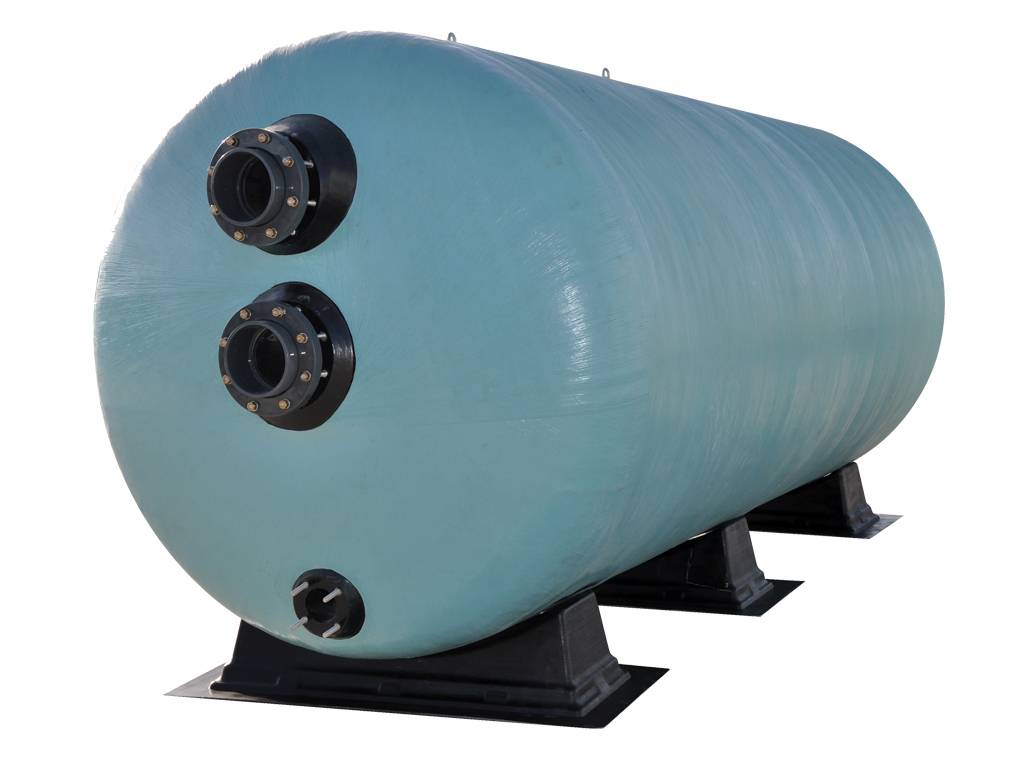

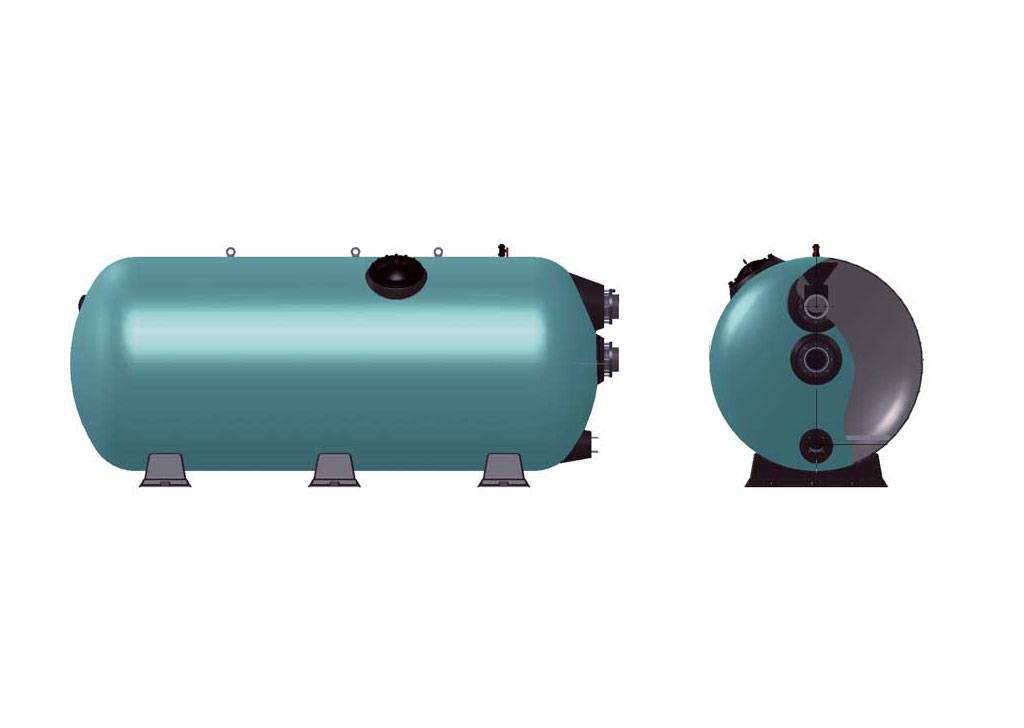

Filter shell made of fiberglass reinforced laminated polyester by fiberglass bobbin winding outside. Complete with pressure gauge, 1 1/2” air valve and 400 mm side manhole. Test pressure 4 kg/cm2. Max. operation pressure 2,5 kg/cm2. Filtration rate Max. 30 m3/h/m2 . Pls. ask price for 4 Bar working pressure. Pls. ask price for “Dual Stack” version.

description code price
(€)
pieces
(box)
weight
(kg)
volume
(m³)
SPARE PART
Ø 1000 mm - L=1500 mm. 34 m3/h 02197161 Sign in to see the price 1 0.000
Ø 1000 mm - L=2000 mm. 51 m3/h 02197162 Sign in to see the price 1 0.000
Ø 1200 mm - L=2000 mm. 63 m3/h 02197171 Sign in to see the price 1 0.000
Ø 1200 mm - L=2500 mm. 80 m3/h 02197172 Sign in to see the price 1 0.000
Ø 1400 mm - L=2000 mm. 70 m3/h 02197181 Sign in to see the price 1 0.000
Ø 1400 mm - L=2500 mm. 88 m3/h 02197182 Sign in to see the price 1 0.000
Ø 1400 mm - L=3000 mm. 110 m3/h 02197183 Sign in to see the price 1
Ø 1600 mm - L=2000 mm. 87 m3/h 02197191 Sign in to see the price 1 0.000
Ø 1600 mm - L=2500 mm. 105 m3/h 02197192 Sign in to see the price 1
Ø 1600 mm - L=3000 mm. 137 m3/h 02197193 Sign in to see the price 1 0.000
Ø 1600 mm - L=4000 mm. 163 m3/h 02197194 Sign in to see the price 1
Ø 1600 mm - L=4500 mm. 190 m3/h 02197195 Sign in to see the price
Ø 1800 mm - L=2500 mm. 114 m3/h 02197201 Sign in to see the price 1
Ø 1800 mm - L=3000 mm. 140 m3/h 02197202 Sign in to see the price 1
Ø 1800 mm - L=3500 mm. 166 m3/h 02197203 Sign in to see the price
Ø 1800 mm - L=4000 mm. 191 m3/h 02197204 Sign in to see the price 1
Ø 2000 mm - L=2500 mm. 123 m3/h 02197211 Sign in to see the price 1
Ø 2000 mm - L=3000 mm 152 m3/h 02197212 Sign in to see the price 1
Ø 2000 mm - L=3500 mm. 180 m3/h 02197213 Sign in to see the price 1
Ø 2000 mm - L=4000 mm. 209 m3/h 02197214 Sign in to see the price
Ø 2000 mm - L=4500 mm. 236 m3/h 02197215 Sign in to see the price 1 0.000
Ø 2000 mm - L=5000 mm. 265 m3/h 02197216 Sign in to see the price 1
Ø 2200 mm - L=2500 mm. 137 m3/h 02197221 Sign in to see the price 1
Ø 2200 mm - L=3000 mm. 165 m3/h 02197222 Sign in to see the price 1
Ø 2200 mm - L=3500 mm. 197 m3/h 02197223 Sign in to see the price 1
Ø 2200 mm - L=4000 mm. 229 m3/h 02197224 Sign in to see the price 1
Ø 2200 mm - L=4500 mm. 258 m3/h 02197225 Sign in to see the price 1
Ø 2200 mm - L=5000 mm. 287m3/h 02197226 Sign in to see the price 1
Ø 2400 mm - L=3000 mm. 179 m3/h 02197231 Sign in to see the price 1
Ø 2400 mm - L=3500 mm. 214 m3/h 02197232 Sign in to see the price 1
Ø 2400 mm - L=4000 mm. 248 m3/h 02197233 Sign in to see the price 1
Ø 2400 mm - L=5000 mm. 306 m3/h 02197234 Sign in to see the price 1
Ø 2500 mm - L=4000 mm. 267 m3/h 02197241 Sign in to see the price 1
Ø 2500 mm - L=5000 mm. 341 m3/h 02197242 Sign in to see the price 1

User and Installation Guide

Instruction Manual

Technical Data Sheet / Brochure

02197191- Ø 1600 mm - L=2000 mm 87 m3/h
02197192 -Ø 1600 mm - L=2500 mm 105 m3/h
02197193 - Ø 1600 mm - L=3000 mm. 137 m3/h
02197201 - Ø 1800 mm - L=2500 mm. 114 m3/h
02197202 - Ø 1800 mm - L=3000 mm 140 m3/h
02197203 - Ø 1800 mm - L=3500 mm. 166 m3/h
02197212 - Ø 2000 mm - L=3000 mm 152 m3/h
02197216 - Ø 2000 mm - L=5000 mm 265 m3/h

Certificates of Quality

Quality Conforming Certificate
