Spare Part List

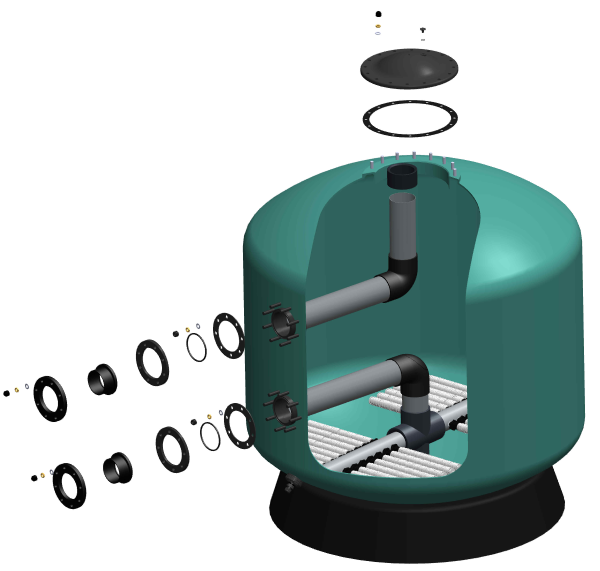

"021720 | Ø1800 mm - 127 m³/h" List of Materials
return back| code | description | quantity | price | pieces | weight | volume |
|---|---|---|---|---|---|---|
| 133911 | Ø 140 mm | 2 | 4.32 | 14 | 8.940 | 0.049 |
| 1331011 | Ø 140 mm | 2 | 4.09 | 23 | 13.680 | 0.049 |
| 021000011 | Screw Cap (Small) | 1 | 0.2 | |||
| 021000013 | Lid Screw Cap | 3 | 0.1 | |||
| 02100001TB | Ø 50 Turbidron Water Discharge Parts Set | 1 | 0 | |||
| 02100005 | Air Purge | 1 | 1.4 | |||
| 860269 | Air Purge O-Ring | 1 | 0,3 | |||
| 8500052 | M16 Grass Nut | 4 | 0 | |||
| 8500353 | M16 Inox Stamp | 4 | 0,75 | |||
| 860284 | Wide Cower Gasket | 1 | 14 | |||
| 860045 | Ø140 Bolted Flange Gasget 248x165x5/7,5 | 2 | 10 | |||
| 860025 | Ø140 Turbidron Bolted D Gasket 145x145x9 | 2 | 4,5 | |||
| 021720UIT | Ø1800 Coil Wound Filter Upper Inner Set | 1 | ||||
| 021720AIT | Ø1800 Coil Wound Filter Bottom Inner Set | 1 | 298.6 | |||
| 021000035 | Ø1800 Polyester Stand | 1 | 0 | |||
| 021000002 | Air Discharge Set | 1 | 0 | |||
| 02121809 | Ø140 Bolted Union Trapezoid Flange | 2 | ||||
| 02100079 | 1 |
