GEMAS “BROADEX” POOL SAND FILTERS
GEMAS “BROADEX” POOL SAND FILTERS

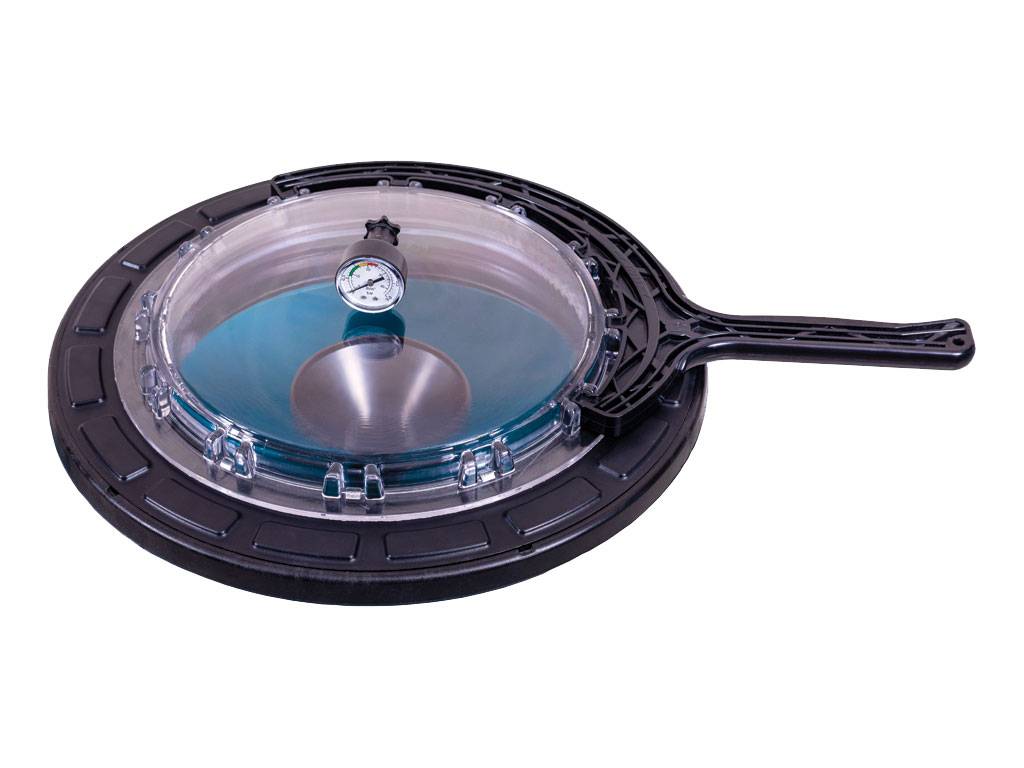

Made of FRP. Wide transparent screw lid (400 mm inner diameter), complete with plastic opening handle, multi-way valve, fittings, and pressure gauge. Five-year body warranty. Test pressure 3,5 kg/cm2, maximum operation pressure 2,5 kg/cm2, Maximum filtration rate 50 m3/h/m2
| description | code | price (€) |
pieces (box) |
weight (kg) |
volume (m³) |
SPARE PART
|
|---|---|---|---|---|---|---|
| Ø 560 mm Large Lid - 1 1/2”side mounted multiport valve - 12 m3/h | 021112LLT | Sign in to see the price | 1 | 20.000 | 0.215 | View |
| Ø 615 mm Large Lid - 1 1/2”side mounted multiport valve - 15 m3/h | 021113LLT | Sign in to see the price | 1 | 25.000 | 0.325 | View |
| Ø 760 mm Large Lid - 2”side mounted multiport valve - 22 m3/h | 021114LLT | Sign in to see the price | 1 | 32.000 | 0.440 | View |
| Ø 830 mm Large Lid - 2”side mounted multiport valve - 27 m3/h | 021115LLT | Sign in to see the price | 1 | 40.000 | 0.660 | View |
| Ø 920 mm Large Lid - 2”side mounted multiport valve - 32 m3/h | 021116LLT | Sign in to see the price | 1 | 50.000 | 0.790 | View |
| Ø 1000 mm Large Lidwithout valve, 2 1/2” connection - 40 m3/h | 021117LLT | Sign in to see the price | 1 | 70.000 | 0.930 | |
| Ø 1200 mm Large Lidwithout valve, 2 1/2” connection - 64 m3/h | 021216LLT | Sign in to see the price | 1 | 80.000 | 1.160 |
User and Installation Guide |
||
| User guide | ||
Technical Data Sheet / Brochure |
||
| Broadex Filter | ||
Certificates of Quality |
||
