Spare Part List

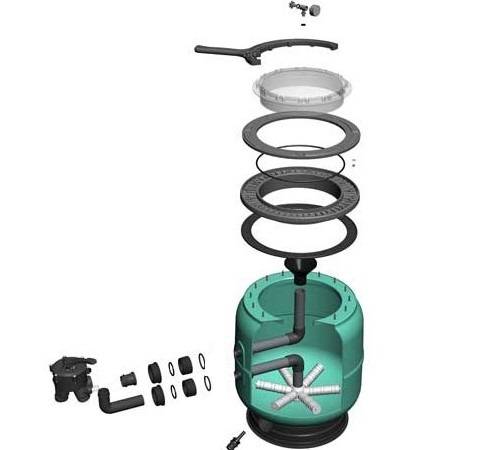

"021113LLT | Ø615 mm Large Lid - 1,5" side mounted multiport valve - 15 m³/h" List of Materials

return back
code description quantity price pieces weight volume
02400 Ø 50 mm Slip Connections - Metric 1 43 1 1.600 0.008
021000000 Water Drainage Piece 1 7
021000019 Filter Funnel 1 13
021000041 Filter Manometer Ø52 0-3 Bar 1 12.00
02100005 Air Purge 1 1.4
860269 Air Purge O-Ring 2 0,3
02100010 Filter Connection Body 2" Female Thd. 2 6.5
02111309 Ø 630 Plastic Base 1 19.00
02120011 LLT Filter Cover Tightening Handle (Opening Switch) 1 9.00
02120012 Large Transparent Cower 1 30.00
02120015 Large Transparent Cower İnner Frame 1 5.00
02120016 Large Transparent Cower Outer Frame 1 40.00
021452002 Tee Part For Air Purge 1 2.00
021913AIT Ø 615 Side Mounted Premium İnside Set (Bottom) 1 46
021913UIT Ø 615 Side Mounted Premium İnside Set (Top) 1 20
0221500641 Ø 50 L New Type Of Elbow 1 11
0221501081 Ø 50 L Elbow Pipe Piece New Type 1 2
13111512AT Filter Connection Nut Ø63 2 5.6
8500058 Washer Inox M8 1 0,98
8500305 M8 Chrome 304 Quality Nut 1 0,10
860202 Large Transparent Cower Frame Gasket 1 12
860259 Large Transparent Cover O-Ring Ø372x8 1 14,6
860268 Ø 500-630  Sandwich Gasket 72x48x19 Thin 2 1,2
860295 Filter Connection O-Ring ( Outer Ø65-5 mm ) 2 1,5
860296 Filter Connection O-Ring ( İnner Ø55-5 mm ) 2 1,1
