Spare Part List

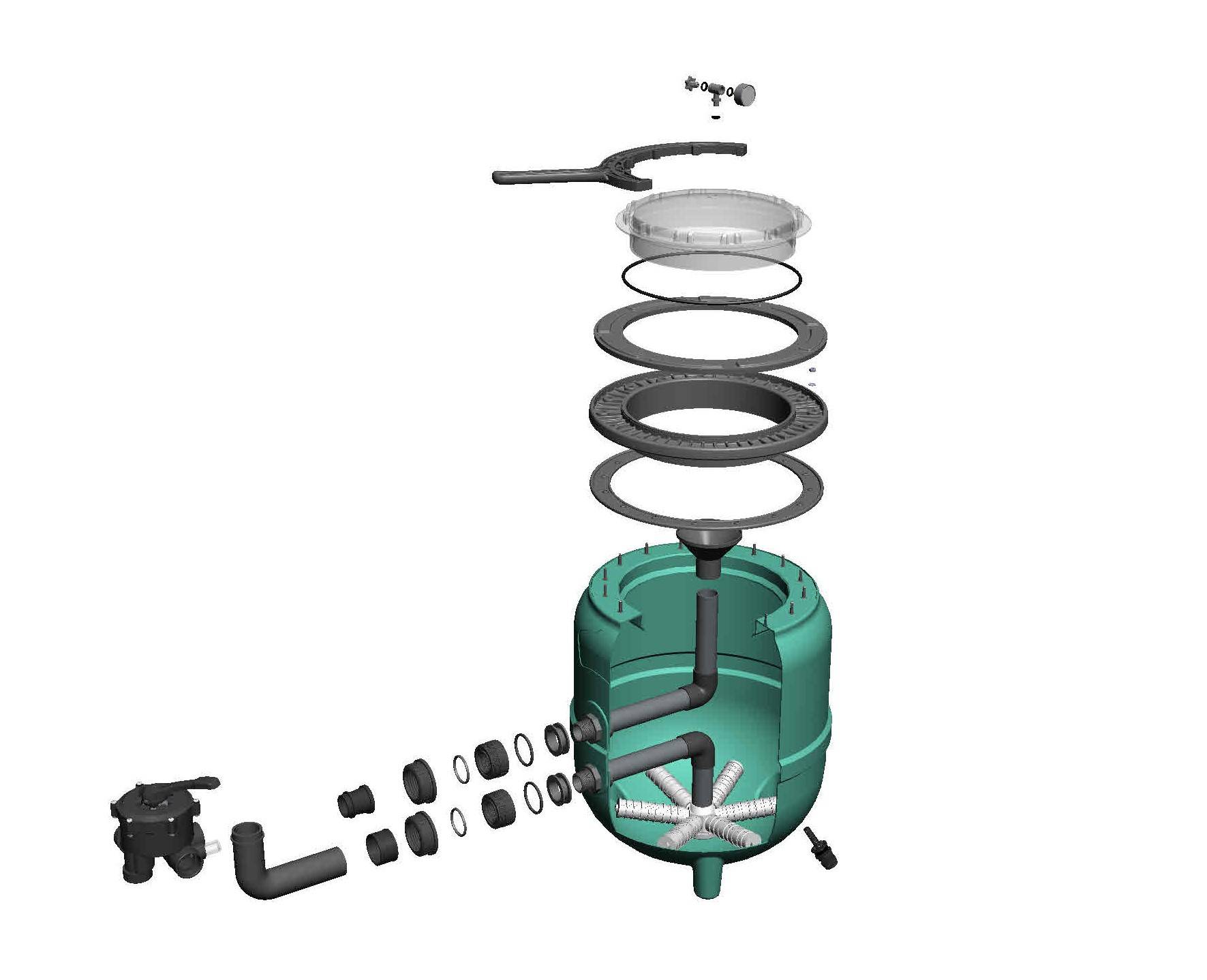

"021813LLT | Ø 615 mm - Large lid. 1 1/2” multiport side valve - 15 m3/h" List of Materials

return back
code description quantity price pieces weight volume
02400 Ø 50 mm Slip connections - metric 1 39.00 1 1.600 0.008
021000000 WATER DRAINAGE PIECE 1 7.00
021000019 FILTER FUNNEL 1 0.20
02100004 MANOMETER Ø 52 0-3 BAR 1 12.00
02100005 AIR PURGE 2 2.00
02100005A AIR PURGE O-RING 1 0.30
02100011 FILTER CONNECTION O-RING ( OUTER Ø 65-5 MM ) 2 1.50
02100014 FILTER CONNECTION O-RING ( INNER Ø 55-5 MM ) 2 1.10
02100015 FILTER CONNECTION BODY 1 ½” FEMALE THD, 2 6.00
02120011 LLT FILTER COVER TIGHTENING HANDLE (OPENING SWITCH) 1 9.00
02120012 LARGE TRANSPARENT COVER 1 30.00
02120015 LARGE TRANSPARENT COVER İNNER FRAME 1 5.00
02120016 LARGE TRANSPARENT COVER OUTER FRAME 1 40.00
021452002 TEE PART FOR AIR PURGE 1 2.00
021813LLTAIT Ø615MM WIDE TRANSPARENT COVER FILTER BOTTOM INNER SET 1 0.00
021813LLTUIT Ø 615 MM FILTRONE WIDE TRANSPARENT COVER FILTER TOP INTERNAL SET 1 0.00
0221500641 Ø50 L NEW TYPE OF ELBOW 1 11.00
0221501081 Ø50 L Elbow Pipe Piece New Type 1 2.00
13111512A FILTER CONNECTION NUT 1 ½” 3 5.60
8500058 WASHER INOX M8 1 0.16
8500305 m8 Chrome 304 quality nut 1 0.10
860017 LARGE TRANSPARENT COVER FRAME GASKET 1 12.00
860259 LARGE TRANSPARENT COVER O-RİNG Ø372x6 1 14.60
860268 Ø500-630 Sandwich Gasket 72x48x19 Thin 2 1.20
