Spare Part List

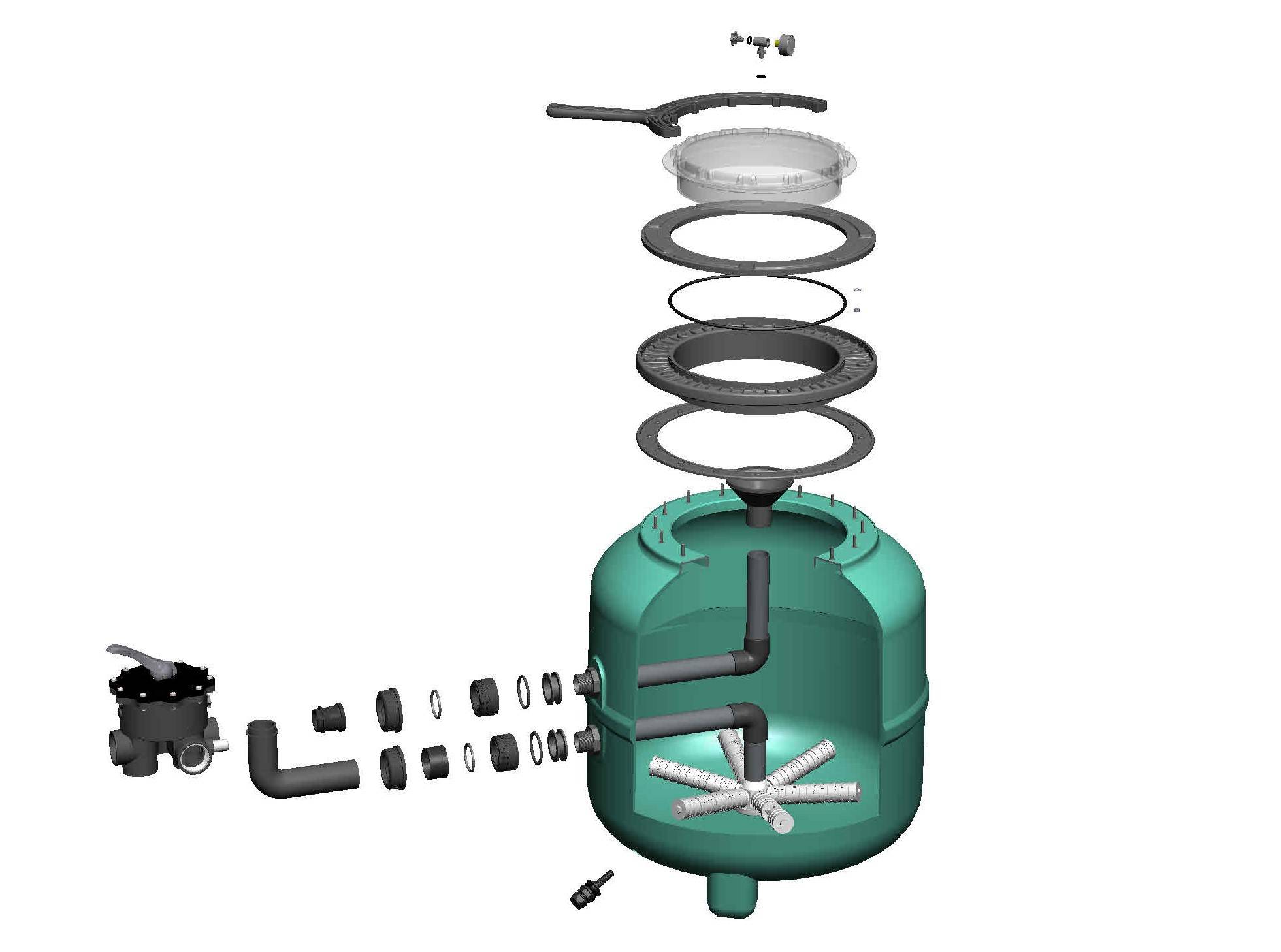

"021814LLT | Ø 760 mm - Large lid. 2” multiport side valve - 22 m3/h" List of Materials

return back
code description quantity price pieces weight volume
02213027 Ø 63 mm Slip connections - metric 1 63.00 1
021000000 WATER DRAINAGE PIECE 1 7.00
021000019 FILTER FUNNEL 1 0.20
02100004 MANOMETER Ø 52 0-3 BAR 1 12.00
02100005 AIR PURGE 1 2.00
02100005A AIR PURGE O-RING 2 0.30
02100010 FILTER CONNECTION BODY 2” FEMALE THD, 2 6.50
02100011 FILTER CONNECTION O-RING ( OUTER Ø 65-5 MM ) 2 1.50
02100013 PIPE CONNECTION 2" 1 5.60
02100014 FILTER CONNECTION O-RING ( INNER Ø 55-5 MM ) 2 1.10
02120011 LLT FILTER COVER TIGHTENING HANDLE (OPENING SWITCH) 1 9.00
02120012 LARGE TRANSPARENT COVER 1 30.00
02120015 LARGE TRANSPARENT COVER İNNER FRAME 1 5.00
02120016 LARGE TRANSPARENT COVER OUTER FRAME 1 40.00
021452002 TEE PART FOR AIR PURGE 1 2.00
021814LLTAIT Ø 760MM FILTRONE WIDE TRANSPARENT COVER FILTER BOTTOM INTERNAL SET 1 0.00
021814LLTUIT Ø 760MM FILTRONE WIDE TRANSPARENT COVER FILTER TOP INNER SET 1 0.00
022150231 L-SHAPED ELBOW Ø 63 MM 1 16.00
022150232 L-SHAPED ELBOW PIPE PART Ø 63 MM 1 2.00
13111512AT FILTER CONNECTION NUT Ø 63 2 5.60
8500058 WASHER INOX M8 1 0.16
8500305 m8 Chrome 304 quality nut 1 0.10
860017 LARGE TRANSPARENT COVER FRAME GASKET 1 12.00
860259 LARGE TRANSPARENT COVER O-RİNG Ø372x6 1 14.60
860268 Ø500-630 Sandwich Gasket 72x48x19 Thin 3 1.20
