GEMAS “FILTRONE LLT” PLASTIC SAND FILTERS
GEMAS “FILTRONE LLT” PLASTIC SAND FILTERS

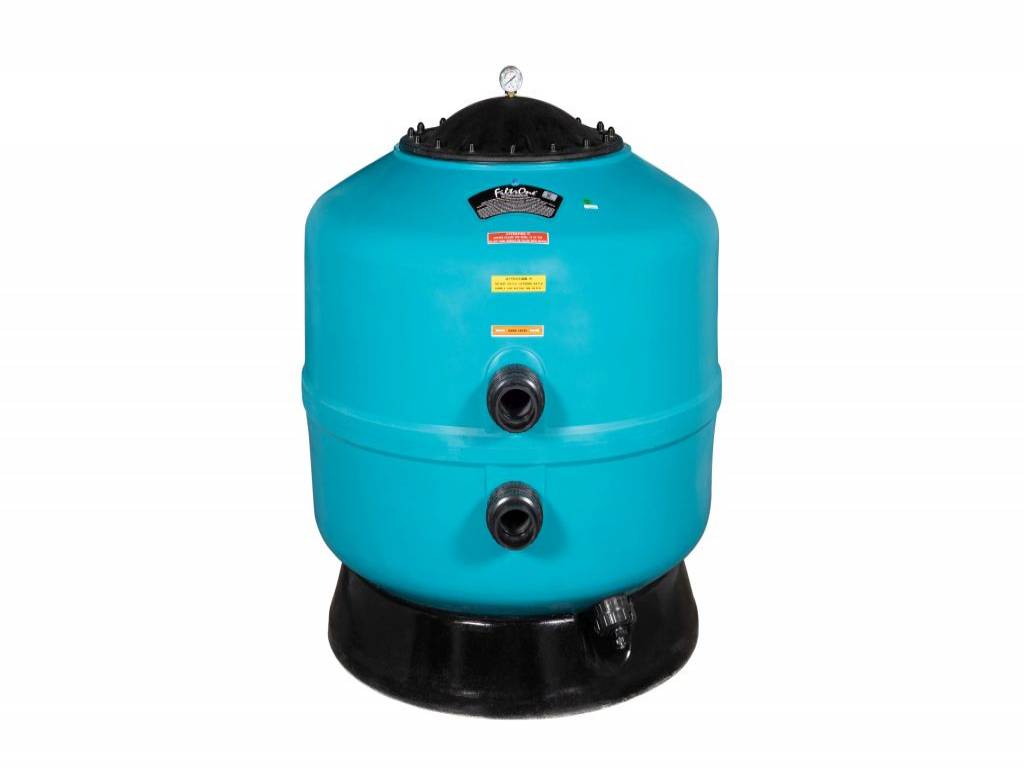

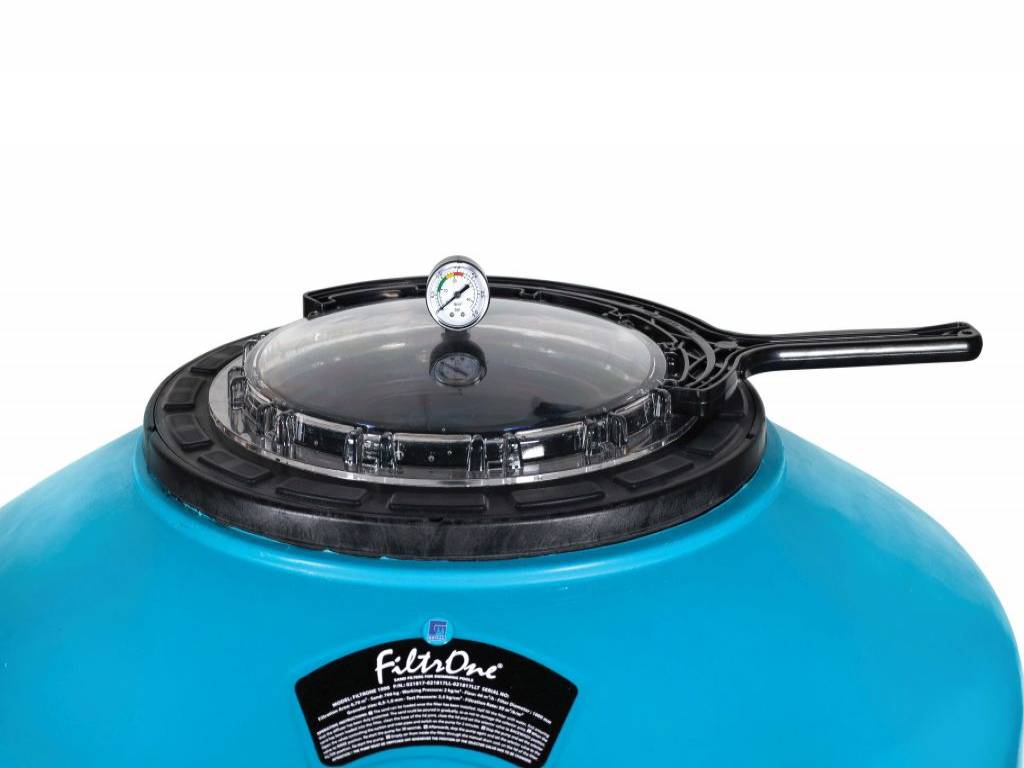

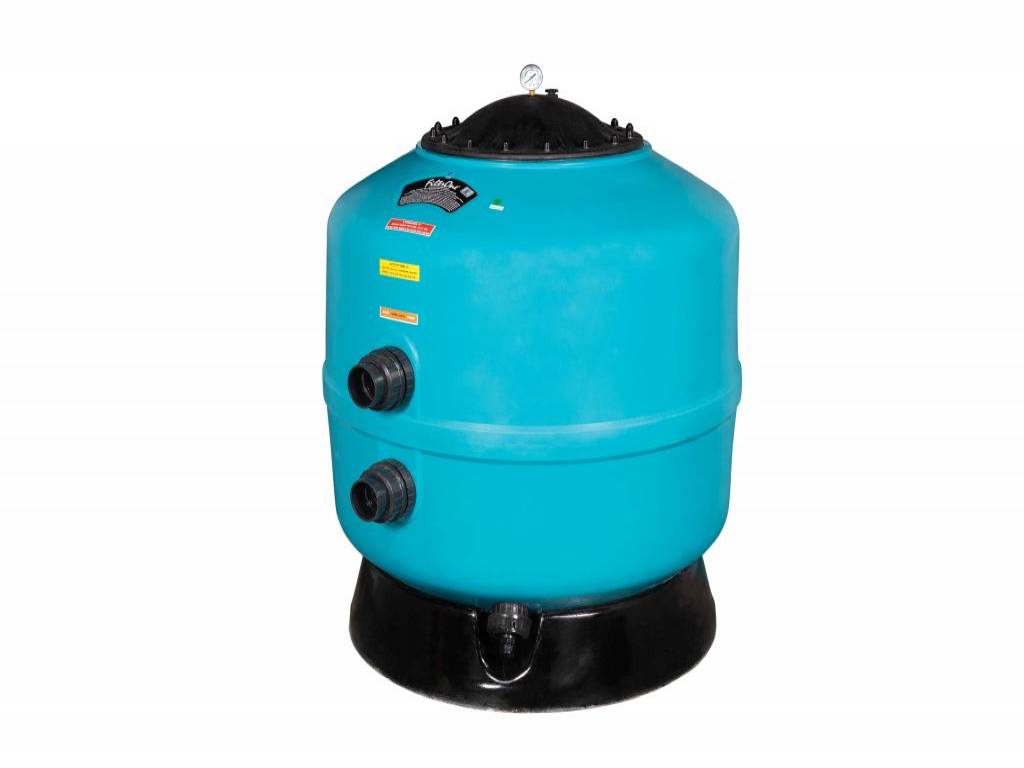

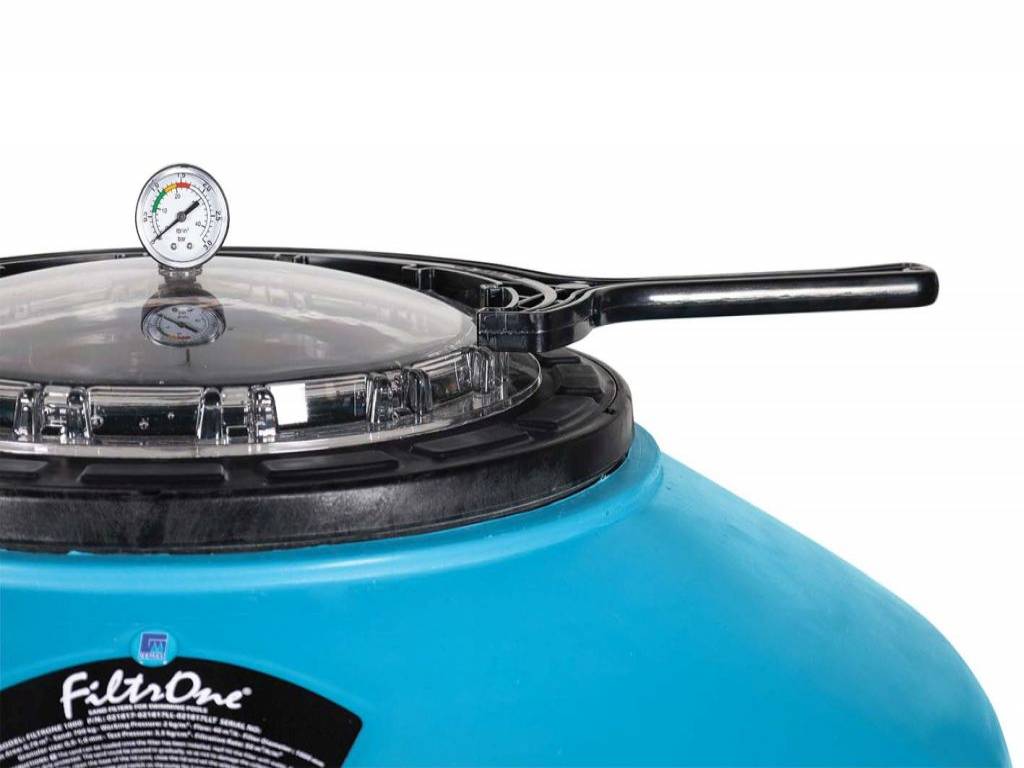

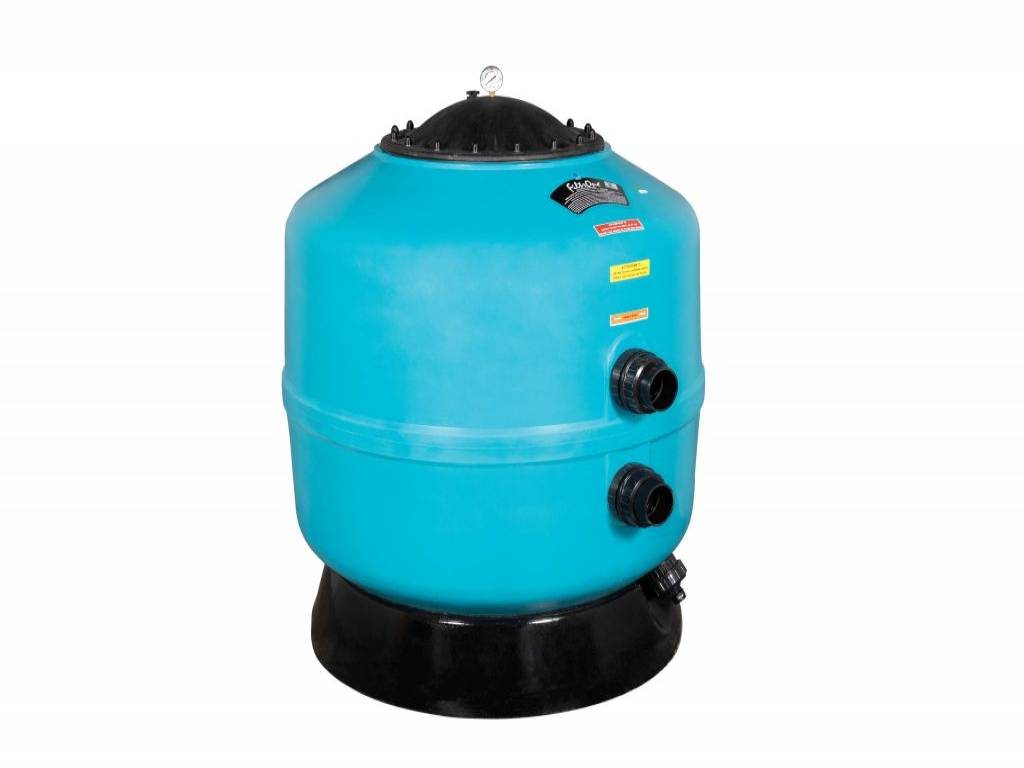

Filter shell made of PE plastic by rotational molding. Wide transparent screw lid (400 mm inner diameter), complete with plastic opening handle, multi-way valve, fittings, and pressure gauge. Five years body warranty. Test pressure 3,5 kg/cm2, maximum operation pressure 2,5 kg/cm2, Maximum filtration rate 50 m3/h/m2
| description | code | price (€) |
pieces (box) |
weight (kg) |
volume (m³) |
SPARE PART
|
|---|---|---|---|---|---|---|
| Ø 560 mm - Large lid. 1 1/2” multiport side valve - 12 m3/h | 021812LLT | Sign in to see the price | 1 | 23.000 | 0.215 | View |
| Ø 615 mm - Large lid. 1 1/2” multiport side valve - 15 m3/h | 021813LLT | Sign in to see the price | 1 | 25.000 | 0.325 | View |
| Ø 760 mm - Large lid. 2” multiport side valve - 22 m3/h | 021814LLT | Sign in to see the price | 1 | 32.000 | 0.440 | View |
| Ø 920 mm - Large lid. 2” multiport side valve - 32 m3/h | 021815LLT | Sign in to see the price | 1 | 50.000 | 0.790 | |
| Ø 1000 mm - Large lid. Without multiport valve 2 1/2” - 40 m3/h | 021817LLT | Sign in to see the price | 1 | 57.000 | 0.930 | |
| Ditto, 2 1/2” multiport valve | 021817LTM | Sign in to see the price | 1 | 57.000 | 0.930 | |
| Ø 1200 mm - Large lid. Without multiport valve 2 1/2” - 64 m3/h | 021816LLT | Sign in to see the price | 1 | 77.000 | 1.160 | |
| Ditto, 3” multiport valve | 021816LTM | Sign in to see the price | 1 | 77.000 | 1.160 |
User and Installation Guide |
||
| Installation Guide | ||
Technical Data Sheet / Brochure |
||
| Technical Data Sheet | ||
Certificates of Quality |
||
| Quality Conforming Certificate | ||
